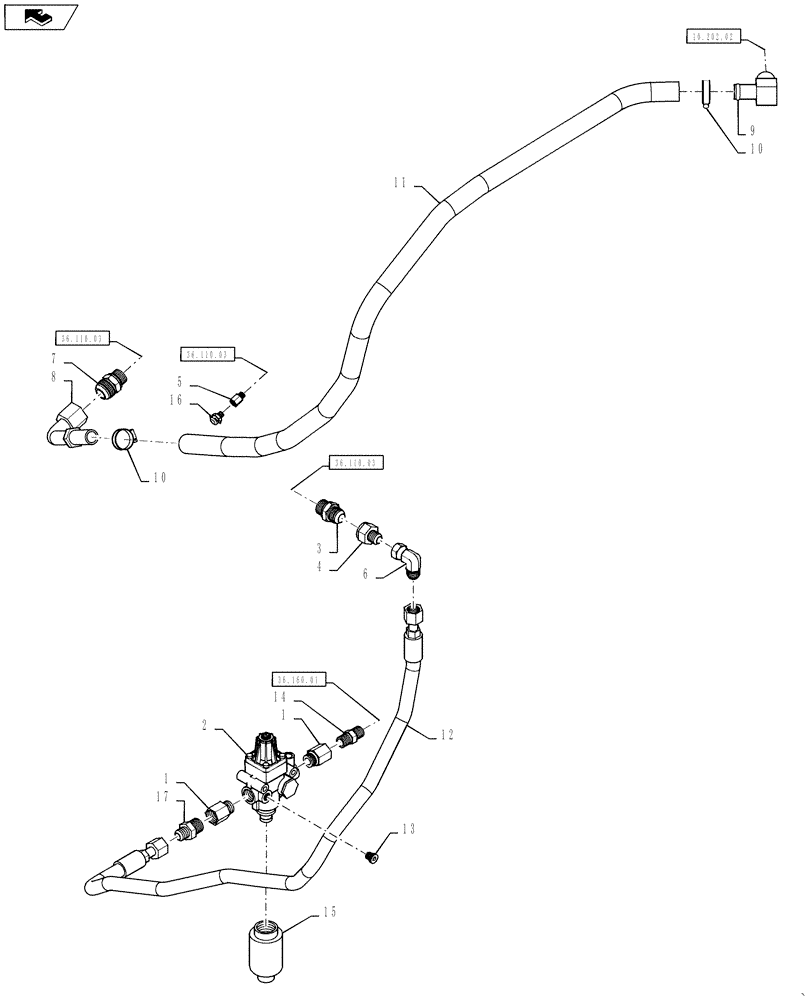

Запчасти Case IH 4430 (36.110.02[02]) - AIR TANK CHARGE, AIR COMPRESSOR, FOAMER, SN YCT033893 AND AFTER (36) - PNEUMATIC SYSTEM

1

87271484

FITTING

M22 X 1/2" NPT

2шт.

2

87272409

PNEUMATIC VALVE

Air Compressor, Unloader

1шт.

3

84173221

ADAPTER

1-1/16" - 12 JIC x M26-1.5 ORB

1шт.

4

87301344

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

1шт.

5

84315910

ADAPTER

M12 X 1/8 NPT

1шт.

6

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/16" - 20 JIC x M12-1.5 ORB

1шт.

7

84175115

ADAPTER

M26-1.5 x -16 JIC

1шт.

8

84175116

FITTING

-16 Hose Barb x -16 JIC, 90 Deg

1шт.

9

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

1шт.

10

BN310447

HOSE CLAMP

#20, Stainless Steel

2шт.

11

84325541

HYDRAULIC HOSE

1" x 51", Air Intake Tube To Air Compressor

1шт.

12

BN314858

HOSE,15.88mm ID x 1270mm L

-10 x 50", Air Compressor To Air Tank

1шт.

13

87272532

PLUG

M12 X 1.5, Hollow Hex

1шт.

14

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1шт.

15

87590733

MUFFLER

Unload Valve Silencer

1шт.

16

84159148

BREATHER

Breather

1шт.

17

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

1шт.
