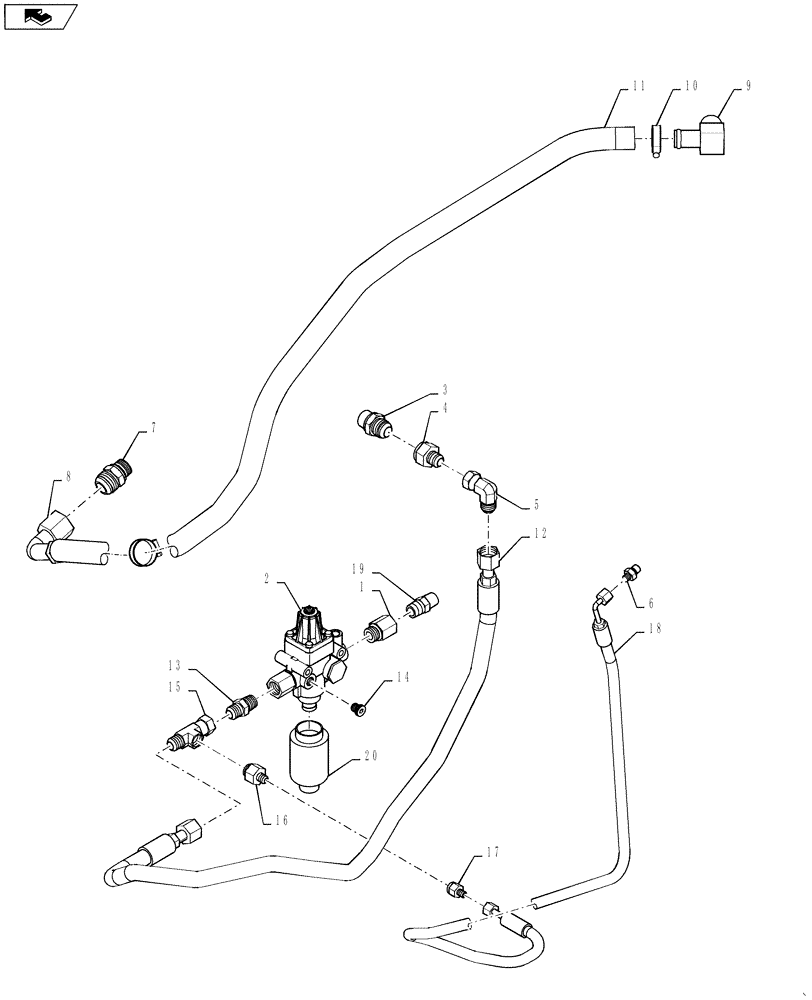

Запчасти Case IH 4430 (36.110.02[01]) - AIR TANK CHARGE, AIR COMPRESSOR, FOAMER, BSN YCT033893 (36) - PNEUMATIC SYSTEM

1

87271484

FITTING

M22 X 1/2" NPT

2шт.

2

87272409

PNEUMATIC VALVE

Air Compressor, Unloader

1шт.

3

84173221

ADAPTER

1-1/16" - 12 JIC x M26-1.5 ORB

1шт.

4

87301344

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

1шт.

5

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

6

84173220

ADAPTER

7/16" - 20 JIC x M12-1.5 ORB

1шт.

7

84175115

ADAPTER

M26-1.5 x -16 JIC

1шт.

8

84175116

FITTING

-16 Hose Barb x -16 JIC, 90 Deg

1шт.

9

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

1шт.

10

BN310447

HOSE CLAMP

#20, Stainless Steel

2шт.

11

84325541

HYDRAULIC HOSE

1" x 51", Air Intake Tube To Air Compressor

1шт.

12

BN314858

HOSE,15.88mm ID x 1270mm L

-10 x 50", Air Compressor To Air Tank

1шт.

13

242680

HYD CONNECTOR,7/8" - 14 JIC x 1/2" - 14 NPT

1шт.

14

87272532

PLUG

M12 X 1.5, Hollow Hex

1шт.

15

86513011

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

1шт.

16

218-765

REDUCER,37 Degree, 7/8"-14, Fem x 9/16"-18 Male

1шт.

17

70926786

REDUCER

9/16"-18 FPT x 7/16"-20 MPT

1шт.

18

87266955

HOSE

-4 x 60", Air Compressor To Air Tank

1шт.

19

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1шт.

20

87590733

MUFFLER

Unload Valve Silencer

1шт.
