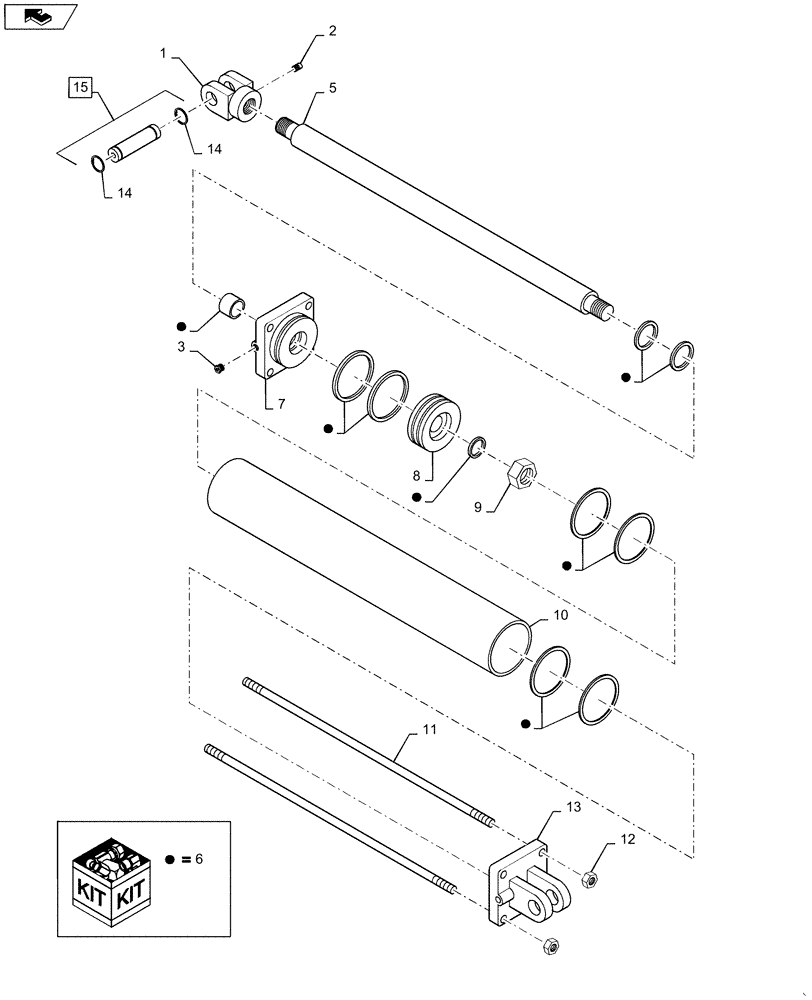

Запчасти Case IH 4430 (35.964.16) - OUTER BOOM FOLD CYLINDER, 120 BOOM (35) - HYDRAULIC SYSTEMS

0

87505171

HYDRAULIC CYLINDER,31.75mm Rod, 406.4mm Stroke

Outer Boom Fold, 2-1/2" x 16", 1-1/4" Rod, 120' Boom

1шт.

1

7997

CLEVIS

1-1/8" - 12 Thread, 1" Pin

1шт.

2

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

3

6944

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

5

87577842

SHAFT

1-1/4" x 16" Stroke

1шт.

6

87577841

SEAL KIT

2-1/2" Cylinder

1шт.

7

87409409

HEAD

Cylinder Front

1шт.

8

439277A1

PISTON

2 1/2" Dia

1шт.

9

425038A1

NUT

3/4"-16, GA

1шт.

10

87577843

TUBE,2.6 mm DIA x 16 mm L

Cylinder 2-1/2" x 16"

1шт.

11

87577844

THREADED TIE-ROD

Hydraulic Cylinder

4шт.

12

9628503

NUT,3/8"-16, G5

8шт.

13

87409437

HEAD

Cylinder Base

1шт.

14

87019495

SNAP RING,#98, Ext

2шт.

15

3326

PIN

1" x 2-7/8", Includes Ref 14

1шт.
