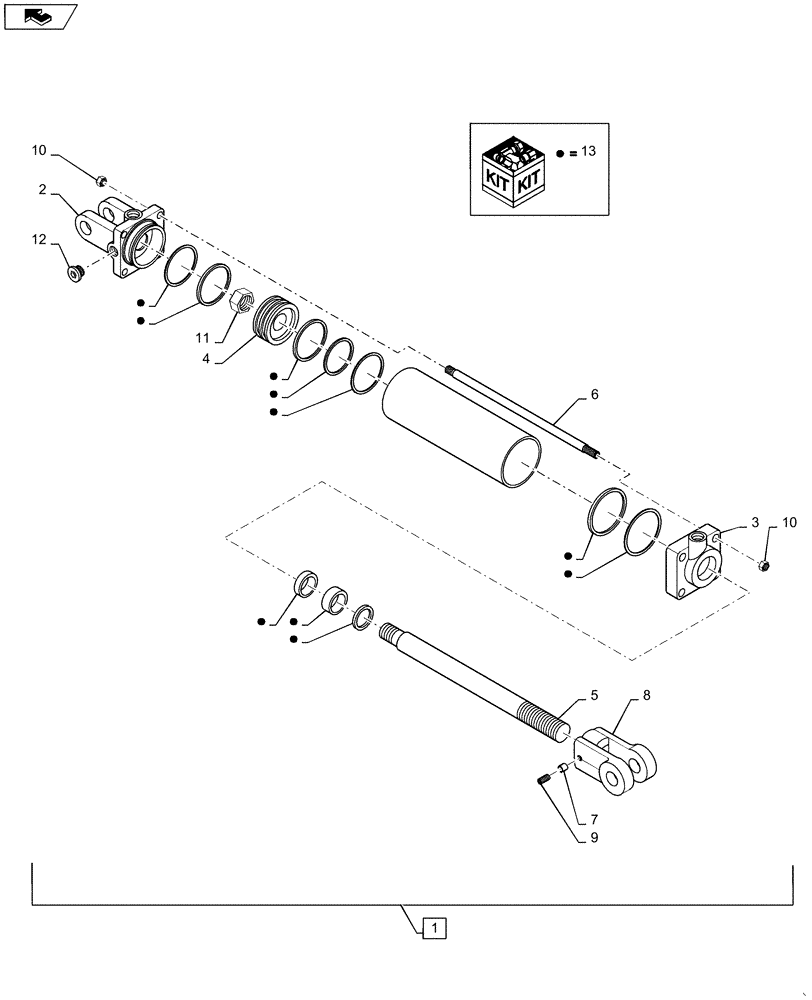

Запчасти Case IH 4430 (35.964.15) - MID BOOM FOLD CYLINDER, 120 BOOM (35) - HYDRAULIC SYSTEMS

1

87446384

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 1/2" x 16", 3000 psi

1шт.

2

87409430

HEAD

Cylinder Base

4шт.

3

87409417

HEAD

Cylinder Front

1шт.

4

84212859

PISTON

3.5" PSP Seal

1шт.

5

87548067

SHAFT

Cylinder Rod

1шт.

6

87409492

THREADED TIE-ROD

Hydraulic Cylinder Tie

4шт.

7

1029632

PLUG

Nylon 5/16" od x 1/4" pln solid

1шт.

8

87409387

CLEVIS,1 -1/4" - 12

1-1/4"-12 Thread, 1" Pin

1шт.

9

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

1шт.

10

408

NUT,5/8" - 18, Gr 5

8шт.

11

87314800

LOCK NUT

1"-14, GA

1шт.

12

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

13

47799224

SEAL KIT

Mid Boom Fold Cylinder, 120' Boom

1шт.
