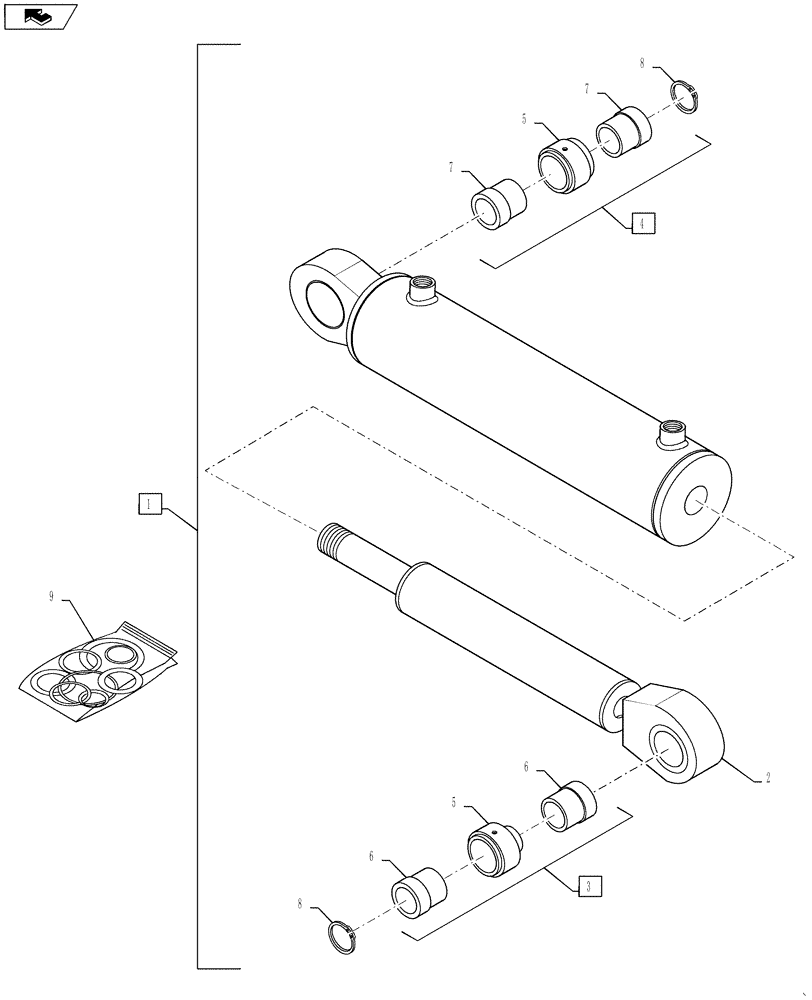

Запчасти Case IH 4430 (35.964.14) - INNER BOOM FOLD CYLINDER, 120’ BOOM (35) - HYDRAULIC SYSTEMS

1

87272004

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 549.4mm Stroke

3.00 x 21.63 x 1.5

1шт.

1

87272004R

REMAN-HYD CYLINDER

4430 PATRIOT SPRAYER TIER 4, 3.00 x 21.63 x 1.5 (9/11-)

1шт.

1

87272004C

CORE-HYD CYLINDER

Return Number

1шт.

2

87272767

CONNECTING ROD

Cylinder Rood

1шт.

3

87746972

SPHERICAL BEARING,20.09mm ID x 50.8mm OD x 51.82mm W

1шт.

4

87746971

BUSHING,20.09mm ID x 50.8mm OD x 55.63mm W

1шт.

5

87266307

SPHERICAL BEARING

Spherical, Cylinder

2шт.

6

87269921

SPACER

Rod End

2шт.

7

87269922

SPACER

Tube End

2шт.

8

100-21200

SNAP RING,2", Int, #200

2шт.

9

87270349

SEAL KIT

Seal Cylinder

1шт.
