(35.964.12) - OUTER BOOM FOLD CYLINDER, 90/100 BOOM

Запчасти Case IH 4430 (35.964.12) - OUTER BOOM FOLD CYLINDER, 90/100 BOOM (35) - HYDRAULIC SYSTEMS

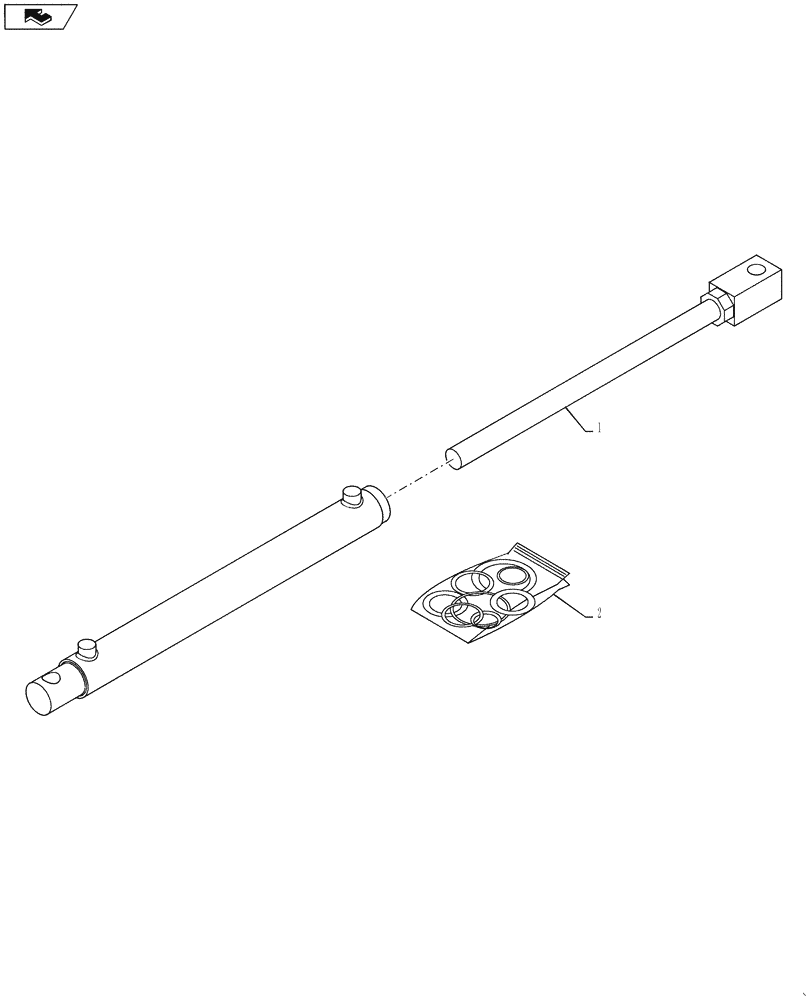

Схема запчастей Case IH 4430 - (35.964.12) - OUTER BOOM FOLD CYLINDER, 90/100 BOOM (35) - HYDRAULIC SYSTEMS
2
home
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87655640

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 511.05mm Stroke

Outer Boom Fold, 2.25 x 20.12 x 1.25, Complete

1шт.

1

87746976

ROD

Rod

1шт.

2

87746977

SEAL KIT

Includes 8 Thur 16

1шт.

Выбрано товаров: 3
