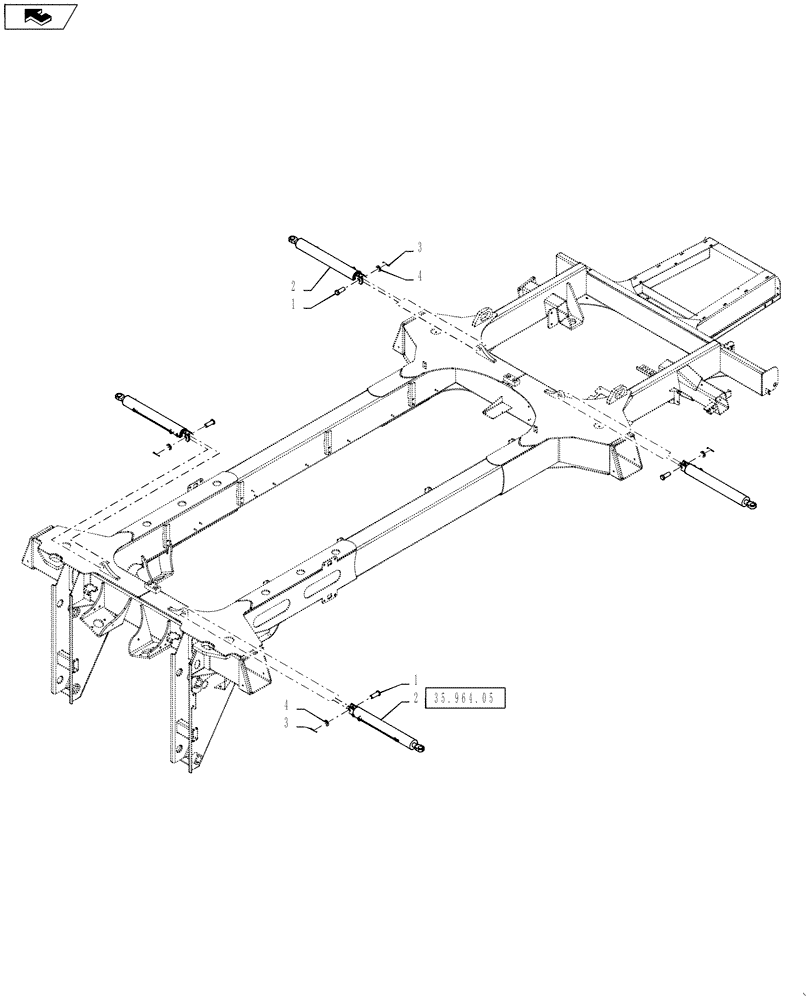

Запчасти Case IH 4430 (35.964.04) - AXLE WIDTH CYLINDER MOUNTING (35) - HYDRAULIC SYSTEMS

1

86632567

HEADED PIN,30.14mm OD x 66.55mm L

4шт.

2

87267921

CYLINDER,Double Acting, 31.75mm Rod, 469.9mm Stroke

2.50 x 18.5 x 1.25, Axle Width Cylinder

4шт.

See Fig 35.964.05 For Service Parts Breakdown

1шт.

3

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2""

4шт.

4

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

4шт.
