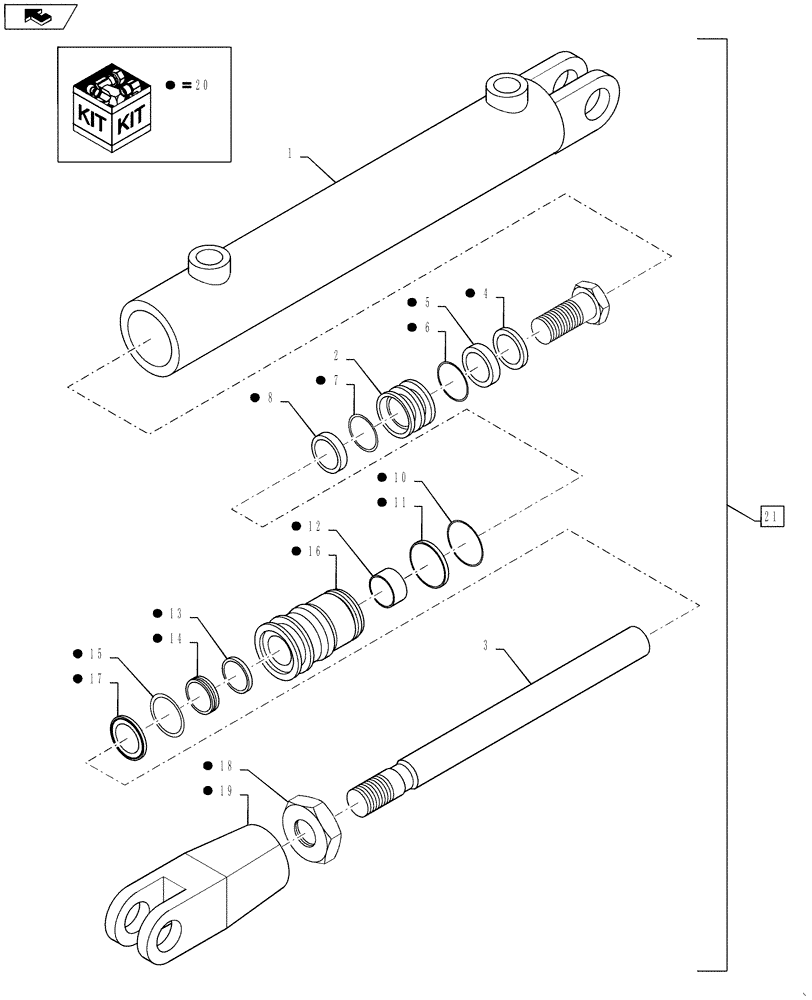

Запчасти Case IH 4430 (35.964.03) - STEERING CYLINDER (35) - HYDRAULIC SYSTEMS

1

87266308

CYLINDER,63.5mm Bore Dia

Case Assembly

1шт.

2

86986242

PLUNGER

PISTON

1шт.

3

BN324210

SHAFT

1шт.

4

86986284

RING,Split, 57.1mm ID x 63.5mm OD x 4.17mm Thk

Wear, 2.500 B X .16W

2шт.

5

86986286

PISTON

Seal

1шт.

6

238-5034

O-RING,0.07" Thk x 2.114" ID, -34, Cl 5, 75 Duro

2шт.

7

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

8

86986285

RING,32.26mm ID x 37.74mm OD x 1.27mm Thk

Back-up

2шт.

9

86986241

SCREW,7/8" - 14 x 1 1/2", Gr 8

Cap, 7/8"-14 x 1 1/2", G8, Not Shown

1шт.

10

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

11

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

ARP 228 PLOY

1шт.

12

86986281

STOP

Wear Ring, 1.25" Rod

1шт.

13

86986282

RING,31.75mm ID x 39.37mm OD x 3.45mm Thk

Step Seal, 1.25" Rod

1шт.

14

86986283

SHANK

U-cup, 1.25" Rod

1шт.

15

238-5141

O-RING,0.103" Thk x 2.3" ID, -141, Cl 5, 75 Duro

1шт.

16

86986280

SCRAPER

Gland

1шт.

17

D95141

WIPER SEAL

1шт.

18

86986240

JAM NUT

Jam

1шт.

19

87266309

EYE

Clevis

1шт.

20

BN324211

SEAL KIT

Includes Ref's. 4, 5, 6, 7, 8, 10, 11, 12, 13, 14, 15, 17

1шт.

21

86986500

CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

2.50 x 10 x 1.25, Complete

1шт.

21

86986500R

REMAN-HYD CYLINDER

4430 PATRIOT SPRAYER TIER 4, 2.50 x 10 x 1.25, Complete (9/11-)

1шт.

21

86986500C

CORE-HYD CYLINDER

Return Number

1шт.
