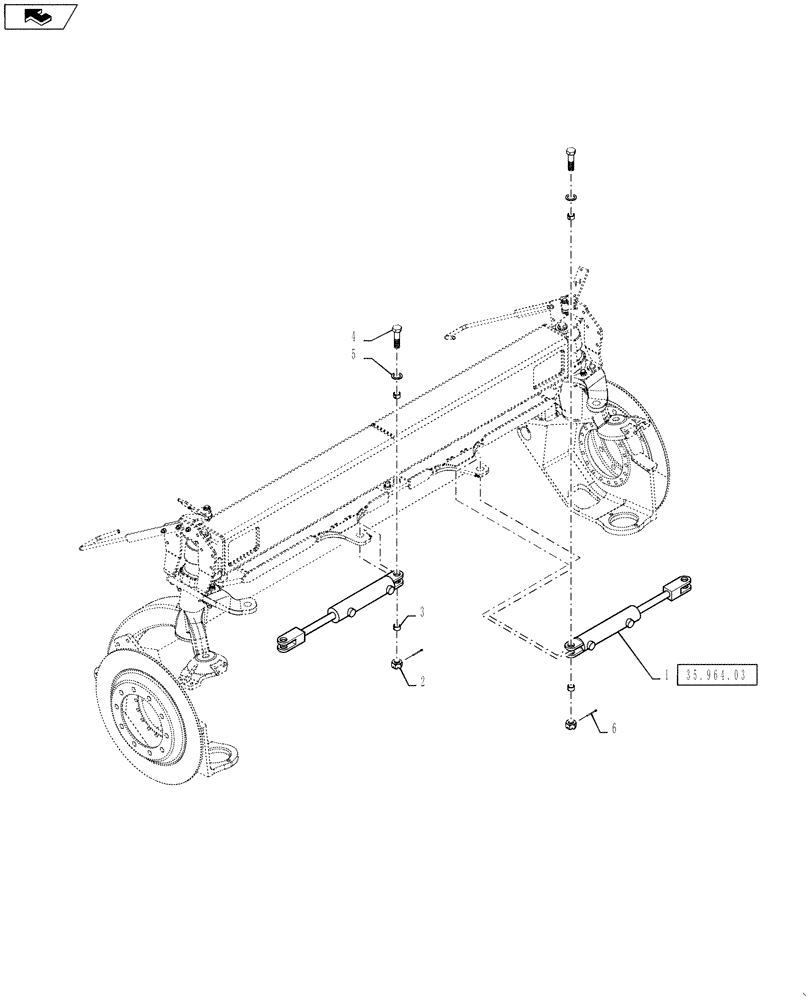

Запчасти Case IH 4430 (35.964.02) - STEERING CYLINDER MOUNTING (35) - HYDRAULIC SYSTEMS

1

86986500

CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

Hydraulic, 2.50 x 10 x 1.25, Steering Cylinder

2шт.

See Fig 35.964.03 For Service Parts Breakdown

1шт.

1

86986500R

REMAN-HYD CYLINDER

4430 PATRIOT SPRAYER TIER 4, Hydraulic, 2.50 x 10 x 1.25, Steering Cylinder (9/11-)

2шт.

1

86986500C

CORE-HYD CYLINDER

Return Number

2шт.

2

87343900

SLOTTED NUT

1-8 GR 5 DOR

4шт.

3

87269214

BUSHING,25.4mm ID x 32.38mm OD x 19.05mm L

Spring

8шт.

4

84600698

BOLT

Steering, 1-8, DOR

4шт.

5

87529131

WASHER,1.31" ID x 2" OD x 0.11" Thk

1.312 x 2 x 0.109 CST DOR

4шт.

6

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2""

4шт.
