(35.964.01[02]) - LADDER CYLINDER ASN YDTO36000

Запчасти Case IH 4430 (35.964.01[02]) - LADDER CYLINDER ASN YDTO36000 (35) - HYDRAULIC SYSTEMS

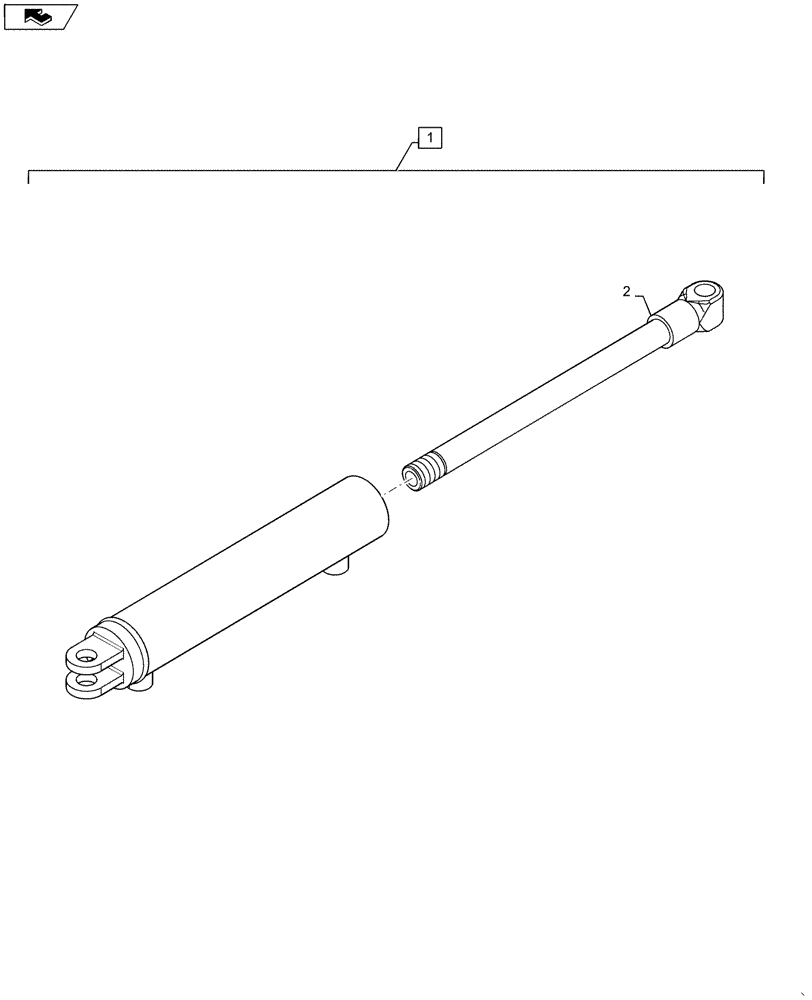

Схема запчастей Case IH 4430 - (35.964.01[02]) - LADDER CYLINDER ASN YDTO36000 (35) - HYDRAULIC SYSTEMS
home
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84330410

HYDRAULIC CYLINDER,Double Acting, 19.05mm Rod, 152.4mm Stroke

38.1mm Bore x 152.4mm x 19.05mm Rod, Complete, Start Serial: YDT036001

1шт.

2

47445950

PISTON ROD

19.05mm Diameter

1шт.

3

47445956

SEAL KIT

For Ref. 1

1шт.

Выбрано товаров: 3
