(35.962.12) - BOOM CONTROL VALVE BREAKDOWN, 8 BANK, 120 BOOM

Запчасти Case IH 4430 (35.962.12) - BOOM CONTROL VALVE BREAKDOWN, 8 BANK, 120 BOOM (35) - HYDRAULIC SYSTEMS

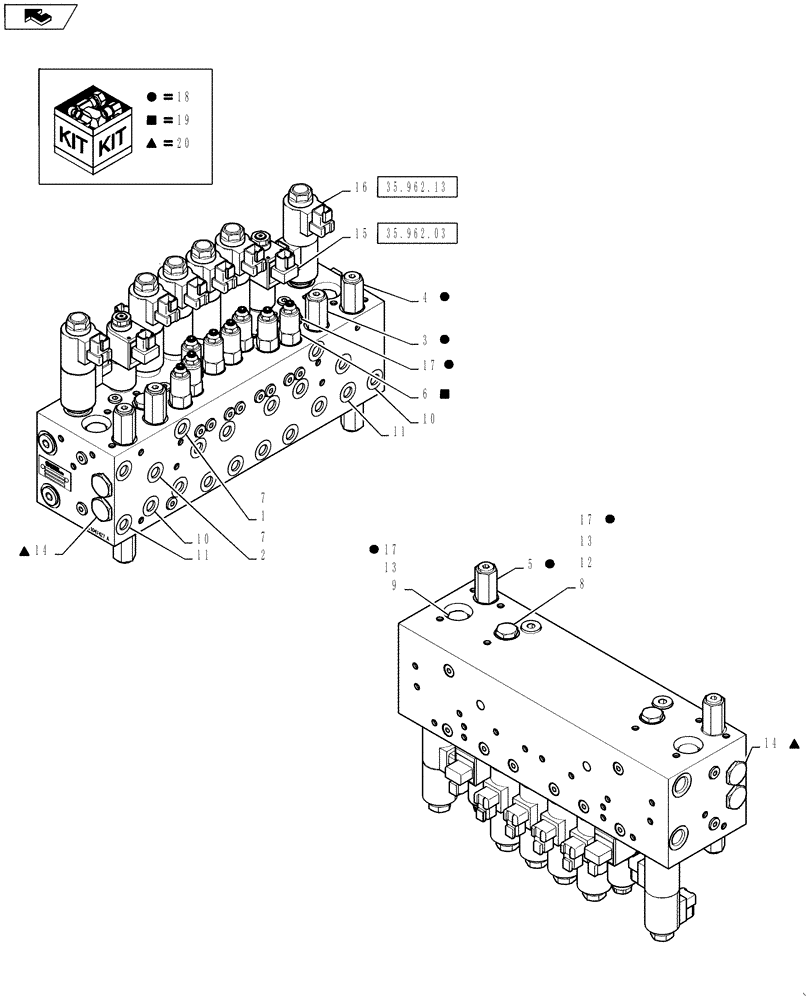

Схема запчастей Case IH 4430 - (35.962.12) - BOOM CONTROL VALVE BREAKDOWN, 8 BANK, 120 BOOM (35) - HYDRAULIC SYSTEMS
16
7
11
4
10
18
19
1
18
18
3
19
13
9
15
35.962.13
35.962.03
20
17
5
20
18
7
12
11
14
17
19
18
8
20
6
17
13
18
18
20
home
14
10
18
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87749946

VALVE

8-Bank, Without Fittings

1шт.

1

87758332

ORIFICE

Disk, .059

2шт.

2

87758330

ORIFICE

Disk, .041

4шт.

3

87758329

VALVE

Relief, 200 PSI

2шт.

4

87758328

VALVE

Relief, 1500 PSI

2шт.

5

87758327

VALVE

Relief, 3000 PSI

2шт.

6

84141863

VALVE

Counterbalance, 3000 psi

8шт.

7

87758326

RETAINER

Snap Ring, Valve

6шт.

8

87758325

PISTON

Valve Bank

2шт.

9

87758324

PISTON

Valve Bank

2шт.

10

87758323

ORIFICE

0.039

2шт.

11

87758322

ORIFICE

0.047

2шт.

12

87758321

ORIFICE

0.071

2шт.

13

87758320

RING

Backup, Teflon

8шт.

14

87473321

VALVE

Shuttle

4шт.

15

87758319

SOLENOID VALVE

With Coil, Boom Level

2шт.

See Fig 35.962.03 For Service Parts Breakdown

1шт.

16

87473320

VALVE

Proportional, Boom Fold

6шт.

See Fig 35.962.13 For Service Parts Breakdown

1шт.

17

87758336

VALVE

Check

8шт.

18

87472226

SEAL KIT

Used on Ref 3, 4, 5, and 17, One Seal Kit Needed Per Valve, Serial Range: -24

1шт.

19

84142309

SEAL KIT

Used on Ref 6, One Seal Kit Needed Per Valve, Serial Range: -25

1шт.

20

87746970

SEAL KIT

Used on Ref 14, One Seal Kit Needed Per Valve, Serial Range: -87473320

1шт.
