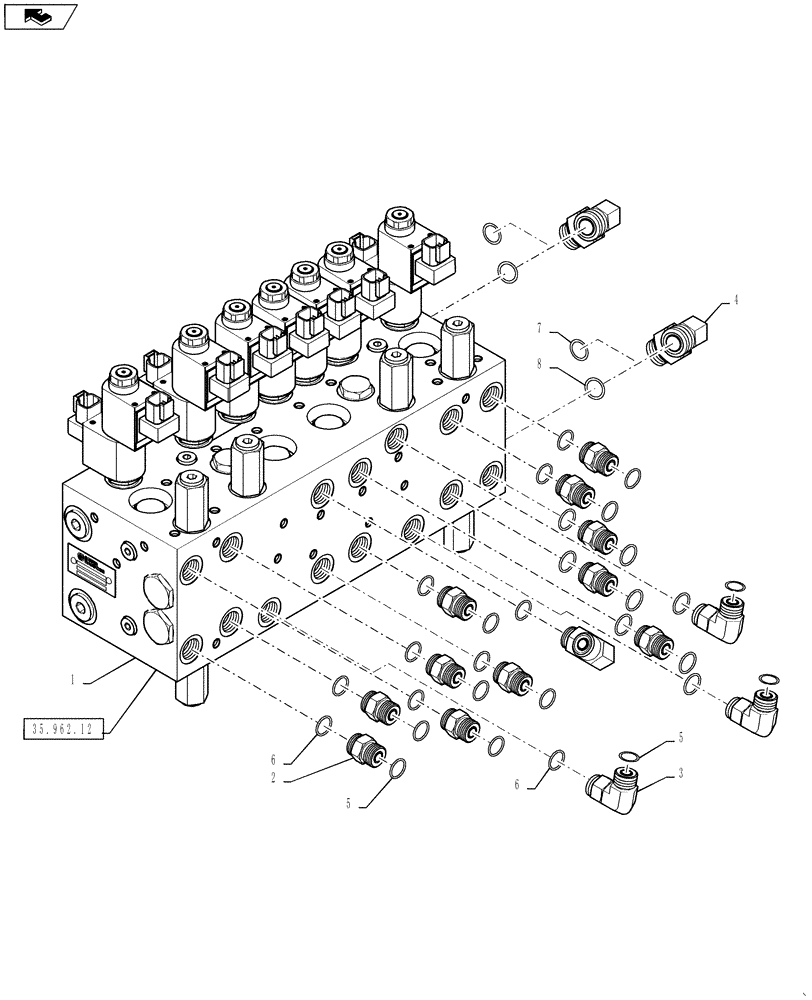

Запчасти Case IH 4430 (35.962.11) - BOOM CONTROL VALVE, 8 BANK, 120 BOOM (35) - HYDRAULIC SYSTEMS

87749947

VALVE

8-Bank, With Fittings, Complete, Includes Ref 2 - 9

1шт.

1

87749946

VALVE

8-Bank, Without Fittings

1шт.

See Fig 35.962.12 For Service Parts Breakdown

1шт.

2

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

16шт.

3

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

4

BN302558

ELBOW

13/16-16 ORFS x 3/4-16 ORB

1шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

20шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

20шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", OFRS

1шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

1шт.
