(35.962.10) - BOOM CONTROL VALVE BREAKDOWN, 6 BANK, 90/100 BOOM

Запчасти Case IH 4430 (35.962.10) - BOOM CONTROL VALVE BREAKDOWN, 6 BANK, 90/100 BOOM (35) - HYDRAULIC SYSTEMS

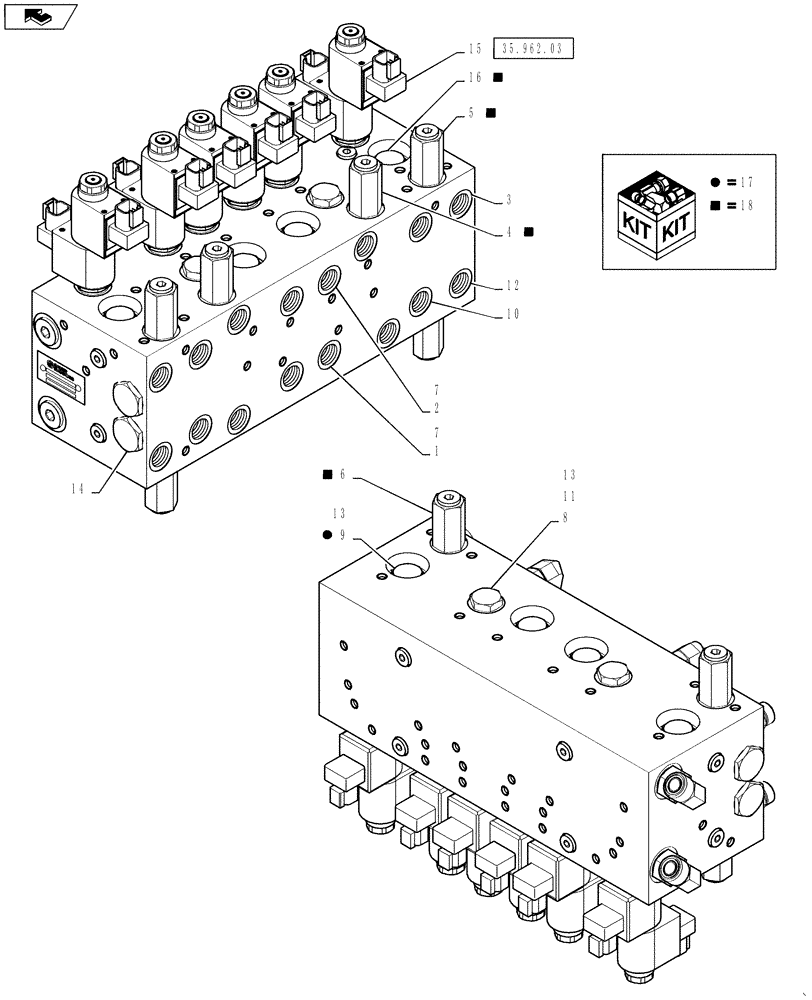

Схема запчастей Case IH 4430 - (35.962.10) - BOOM CONTROL VALVE BREAKDOWN, 6 BANK, 90/100 BOOM (35) - HYDRAULIC SYSTEMS
3
4
18
home
18
7
11
7
13
18
10
17
35.962.03
17
17
5
1
18
6
18
9
2
14
13
8
16
12
15
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87746153

CONTROL VALVE

6 Bank, Without Fittings

1шт.

1

87758332

ORIFICE

Disk, .059"

4шт.

2

87758331

ORIFICE

Disk, .052"

2шт.

3

87758330

ORIFICE

Disk, .041"

4шт.

4

87758329

VALVE

Relief, 200 PSI

2шт.

5

87758328

VALVE

Relief, 1500 PSI

2шт.

6

87758327

VALVE

Relief, 3000 PSI

2шт.

7

87758326

RETAINER

Snap Ring, Valve

10шт.

8

87758325

PISTON

Valve Bank

2шт.

9

87758324

PISTON

Valve Bank

4шт.

10

87758322

ORIFICE

.047"

2шт.

11

87758321

ORIFICE

.071"

2шт.

12

84247013

ORIFICE

.042"

2шт.

13

87758320

RING

Backup, Teflon

12шт.

14

87473321

VALVE

Shuttle

4шт.

15

87758319

SOLENOID VALVE

With Coil, Boom Fold and Level

6шт.

See Fig 35.962.03 For Service Parts Breakdown

1шт.

16

87758336

VALVE

Check

12шт.

17

87746970

SEAL KIT

Used on Ref 9, One Seal Kit Needed Per Valve

1шт.

18

87472226

SEAL KIT

Used on Ref 4, 5, 6, and 16, One Seal Kit Needed Per Valve

1шт.
