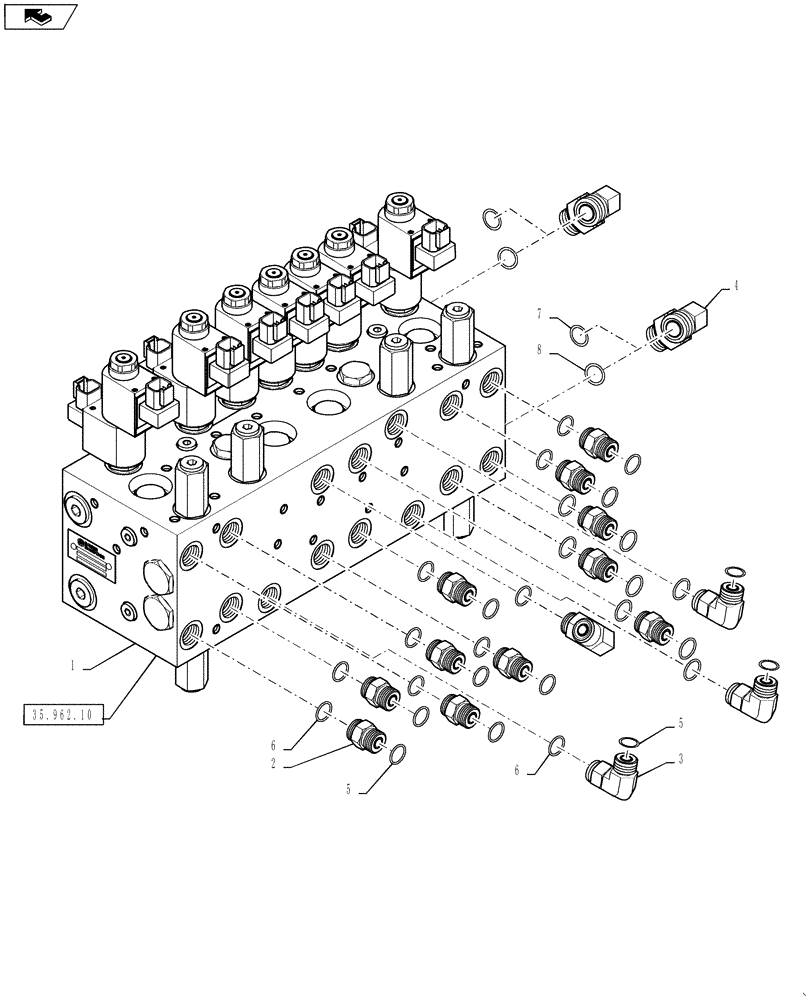

Запчасти Case IH 4430 (35.962.09) - BOOM CONTROL VALVE, 6 BANK, 90/100 BOOM (35) - HYDRAULIC SYSTEMS

87746154

CONTROL VALVE

6-Bank With Fittings, Complete, Includes Ref 1 - 8

1шт.

1

87746153

CONTROL VALVE

6-Bank Without Fittings

1шт.

See Fig 35.962.10 For Service Parts Breakdown

1шт.

2

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

12шт.

3

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

4

BN302558

ELBOW

13/16-16 ORFS x 3/4-16 ORB

2шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

16шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

16шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", OFRS

2шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

2шт.
