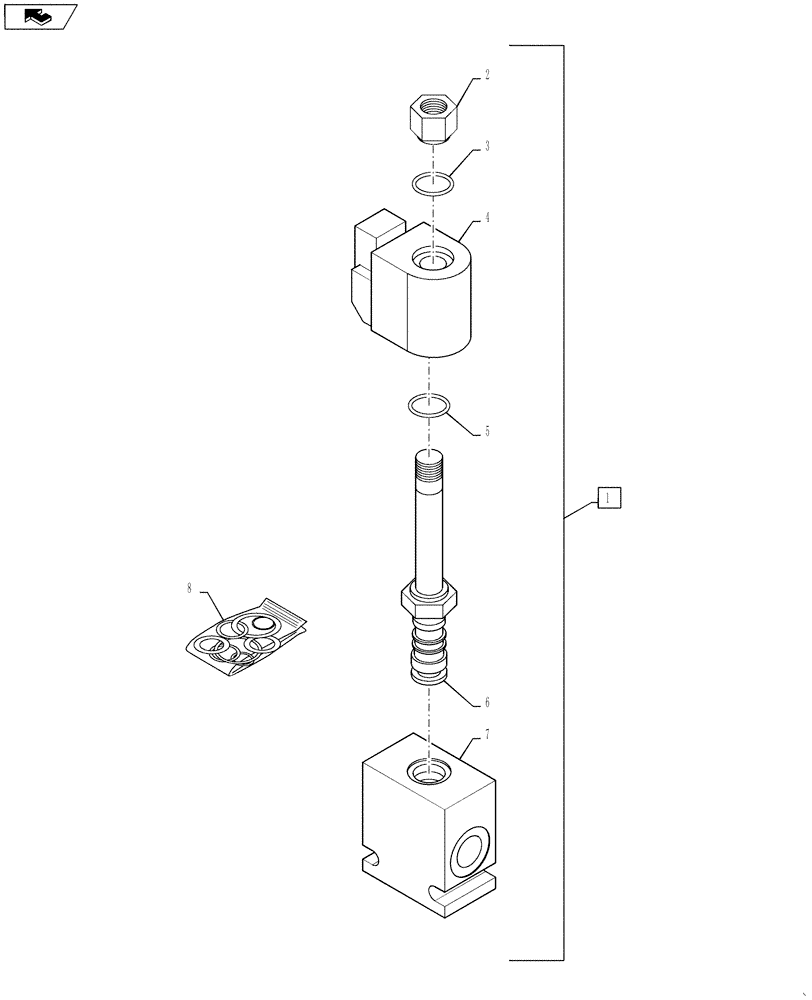

Запчасти Case IH 4430 (35.962.06) - DRIVE MOTOR CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

87272002

HYDRAULIC VALVE

Drive Motor Control Valve, Complete, Includes Ref 2 - 8

1шт.

2

87272310

NUT

1/2"-32

1шт.

3

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

4

87272311

COIL

1шт.

5

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

6

87272312

ACTUATOR

Cartridge

1шт.

7

87272308

HYDRAULIC VALVE

Body

1шт.

8

87272309

REPAIR KIT

Seal Kit, Drive Motor Control Valve

1шт.
