(35.962.03) - AXLE ADJUST AND BOOM FOLD SOLENOID

Запчасти Case IH 4430 (35.962.03) - AXLE ADJUST AND BOOM FOLD SOLENOID (35) - HYDRAULIC SYSTEMS

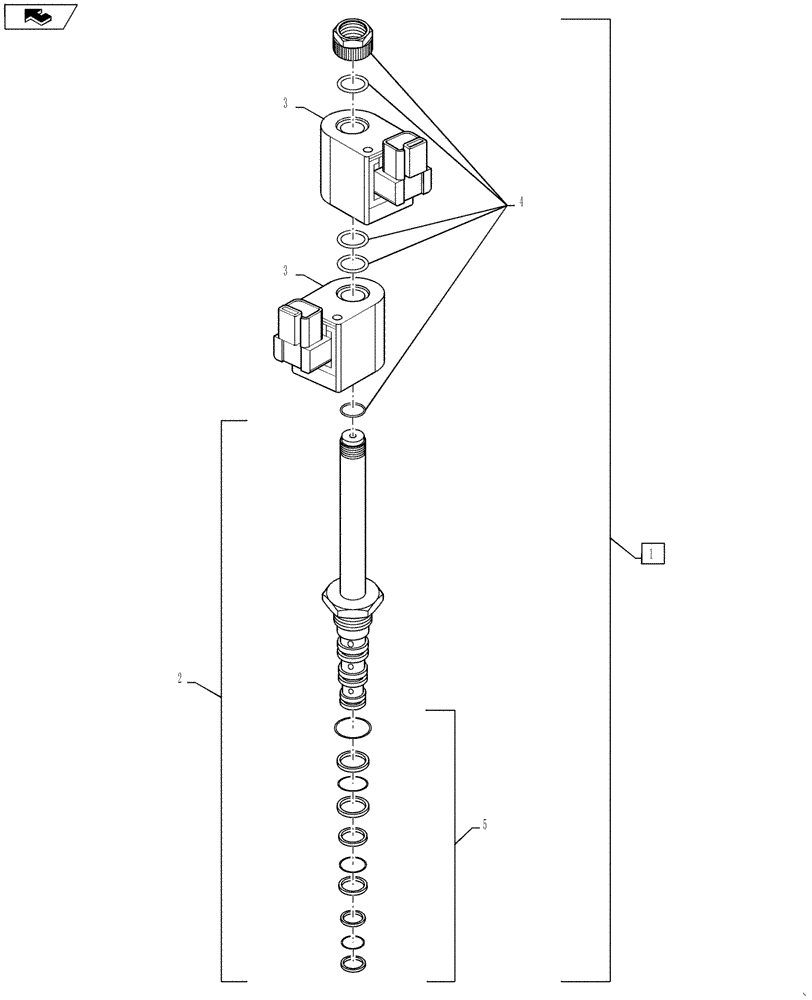

Схема запчастей Case IH 4430 - (35.962.03) - AXLE ADJUST AND BOOM FOLD SOLENOID (35) - HYDRAULIC SYSTEMS
1
5
3
home
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87758319

SOLENOID VALVE

With Coil, Axle Adjust and Boom Fold, Includes Ref 2 - 5

1шт.

2

87758999

VALVE

Includes Ref 4 and 5

1шт.

3

87758997

COIL

2шт.

4

87758998

RETAINER

Nut, Coil, SV08 With O-ring

1шт.

5

87472227

SEAL KIT

Axle Adjust Solenoid

1шт.

Выбрано товаров: 5
