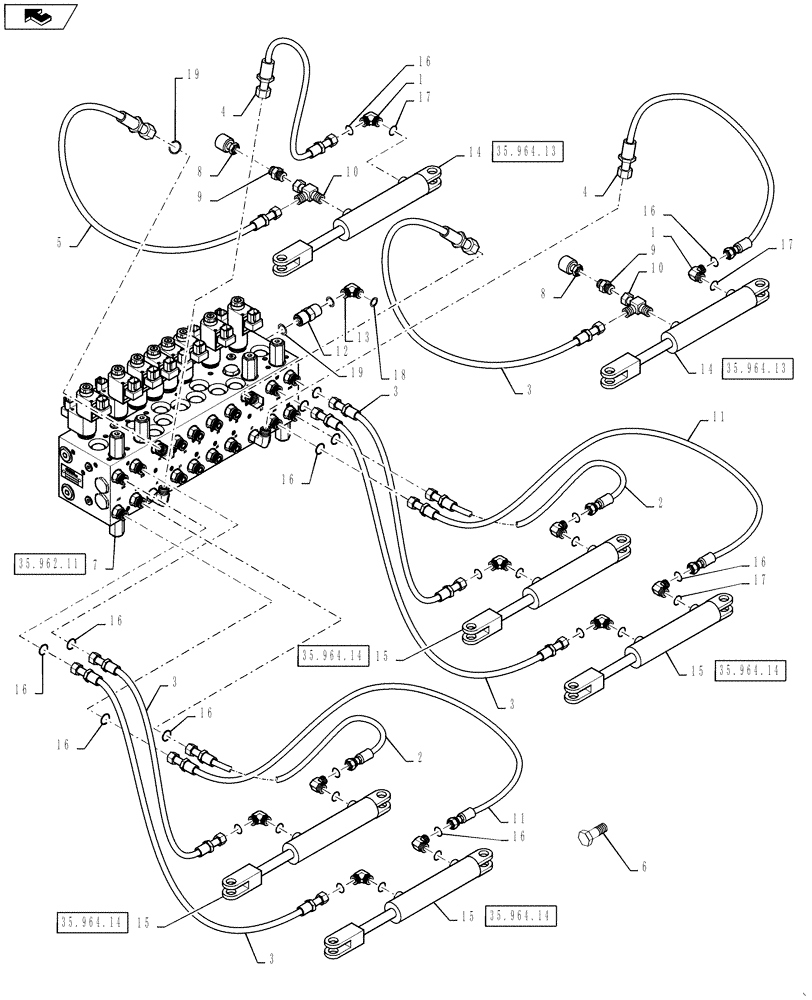

Запчасти Case IH 4430 (35.900.17) - INNER BOOM HYDRAULIC LINES, 120 BOOM (35) - HYDRAULIC SYSTEMS

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

10шт.

2

342591A1

HOSE ASSY.

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 40" Long, Valve to Rear Boom Fold Cylinder Base End

2шт.

3

BN320874

HOSE ASSY.,9.53mm ID x 1625.6mm L, SAE 100R17

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 64" Long, Valve to Boom Fold Cylinder Rod End

4шт.

4

BN307875

HOSE ASSY.

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel x 3/8" ID x 73" Long, Valve to Boom Level Cylinder Base End

2шт.

5

BN307872

HOSE ASSY.

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel x 3/8" ID x 97" Long, Valve to Boom Level Cylinder Rod End

2шт.

6

86980419

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

7

87749947

VALVE

8-Bank, With Fittings

1шт.

See Fig 35.962.11 For Service Parts Breakdown

1шт.

8

87585943

ACCUMULATOR

10 Cubic Inch, 1500PSI

2шт.

9

BN314785

SWIVEL CONNECTION

11/16-16 ORFS x 9/16-18 ORB

2шт.

10

BN302583

FITTING

11/16" -16 ORFS x 9/16" -18 ORB x 11/16" -16 ORFS

2шт.

11

BN317622

HOSE ASSY.,9.53mm ID x 1498.6mm L, SAE 100R17

11/16 -16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 59", Valve to Front Boom Fold Cylinder Base End

2шт.

12

84208068

CHECK VALVE

1 PSI, 3/4" -16 x 13/16" -16

1шт.

13

BN302444

ELBOW UNION

Union Elbow 13/16" -16 ORFS x 13/16" -16 ORFS

1шт.

14

87566312

HYDRAULIC CYLINDER,Double Acting, 41.27mm Rod, 368.3mm Stroke

Boom Level Cylinder, 120' Boom

2шт.

See Fig 35.964.13 For Service Parts Breakdown

1шт.

15

87272004

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 549.4mm Stroke

Inner Boom Fold, 120' Boom

4шт.

See Fig 35.964.14 For Service Parts Breakdown

1шт.

15

87272004R

REMAN-HYD CYLINDER

4430 PATRIOT SPRAYER TIER 4, Inner Boom Fold, 120' Boom (9/11-)

4шт.

15

87272004C

CORE-HYD CYLINDER

Return Number

4шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

14шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

14шт.

18

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

2шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

1шт.
