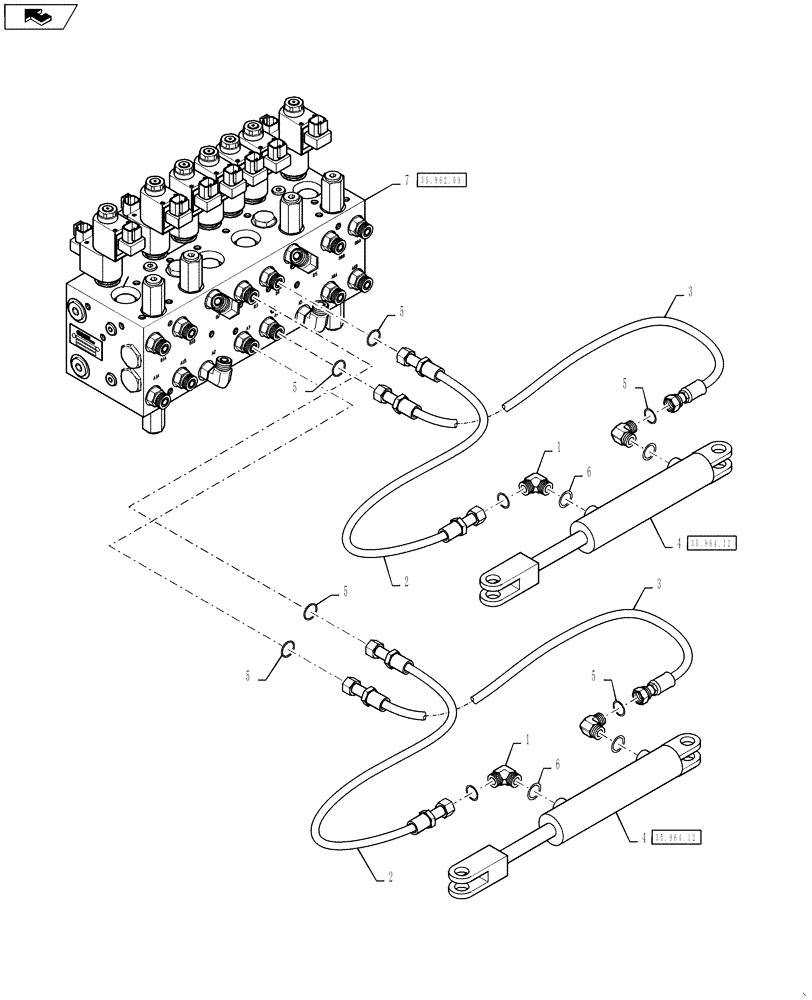

Запчасти Case IH 4430 (35.900.16) - OUTER BOOM FOLD HYDRAULIC LINES, 90/100 BOOMS (35) - HYDRAULIC SYSTEMS

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

2

87474625

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 391" Long, Valve to Outer Boom Fold Cylinder Rod End

2шт.

3

87474626

HYDRAULIC HOSE,9.53mm ID x 9423mm L, SAE 100R17

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 371" Long, Valve to Outer Boom Fold Cylinder Base End

2шт.

4

87655640

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 511.05mm Stroke

Outer Boom Fold, 90/100' Boom, 2.25 x 20.12 x 1.25

2шт.

See Fig 35.964.12 For Service Parts Breakdown

1шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

8шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

4шт.

7

87746154

CONTROL VALVE

6-Bank With Fittings, Boom Control

1шт.

See Fig 35.962.09 For Service Parts Breakdown

1шт.
