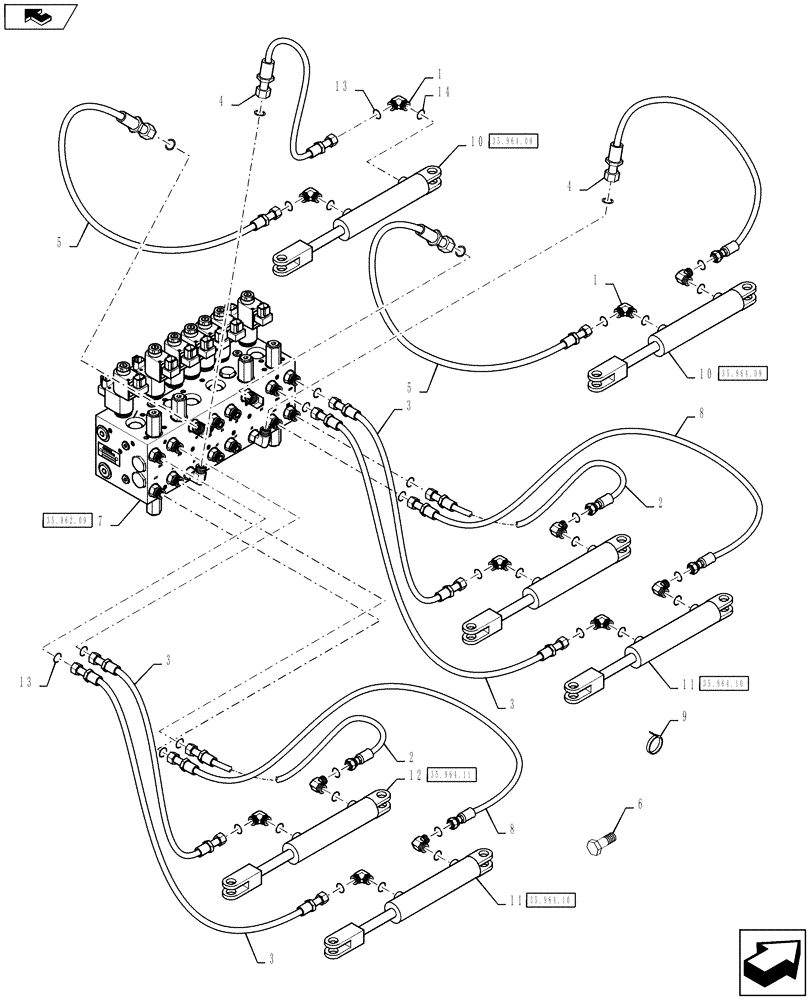

Запчасти Case IH 4430 (35.900.15) - INNER BOOM FOLD HYDRAULIC LINES, 90/100 BOOMS (35) - HYDRAULIC SYSTEMS

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

12шт.

2

342591A1

HOSE ASSY.

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 40" Long, Valve to Rear Boom Fold Cylinder Base End

2шт.

3

BN320874

HOSE ASSY.,9.53mm ID x 1625.6mm L, SAE 100R17

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 64" Long, Valve to Boom Fold Cylinder Rod End

4шт.

4

BN324327

HOSE ASSY.

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel x 3/8" ID x 64" Long, Valve to Boom Level Cylinder Base End

2шт.

5

BN324328

HOSE ASSY.

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel x 3/8" ID x 90" Long, Valve to Boom Level Cylinder Rod End

2шт.

6

86980419

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

7

87746154

CONTROL VALVE

6-Bank With Fittings, Boom Control

1шт.

See Fig 35.962.09 For Service Parts Breakdown

1шт.

8

84164481

HOSE,9.53mm ID x 1066mm L, SAE 100R17

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 42" Long, Valve to Front Boom Fold Cylinder Base End

2шт.

9

BN570007

STRAP

Black Only .12-4.0 Band

20шт.

10

87266461

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 533.4mm Stroke

Boom Level, 3.00 x 21 x 1.50

2шт.

See Fig 35.964.09 For Service Parts Breakdown

1шт.

10

87266461R

REMAN-HYD CYLINDER

4430 PATRIOT SPRAYER TIER 4, Boom Level (9/11-)

2шт.

10

87266461C

CORE-HYD CYLINDER

Return Number

2шт.

11

84188920

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 525.53mm Stroke

Inner Boom Fold, Front, 2.50 x 20.69 x 1.38

2шт.

See Fig 35.964.10 For Service Parts Breakdown

1шт.

11

84188920R

REMAN-HYD CYLINDER

4430 PATRIOT SPRAYER TIER 4, Inner Boom Fold, Front, 2.50 x 20.69 x 1.38, 90'/100' BOOMS (9/11-)

2шт.

11

84188920C

CORE-HYD CYLINDER

Return Number

2шт.

12

87266460

CYLINDER,Double Acting, 34.92mm Rod, 549.4mm Stroke

Inner Boom Fold, Rear, 2.50 x 21.62 x 1.375

2шт.

See Fig 35.964.11 For Service Parts Breakdown

1шт.

87266460R

REMAN-HYD CYLINDER

4430 - PATRIOT SPRAYER TIER 4 (9/11-)

2шт.

87266460C

CORE-HYD CYLINDER

Return Number

1шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

24шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

12шт.
