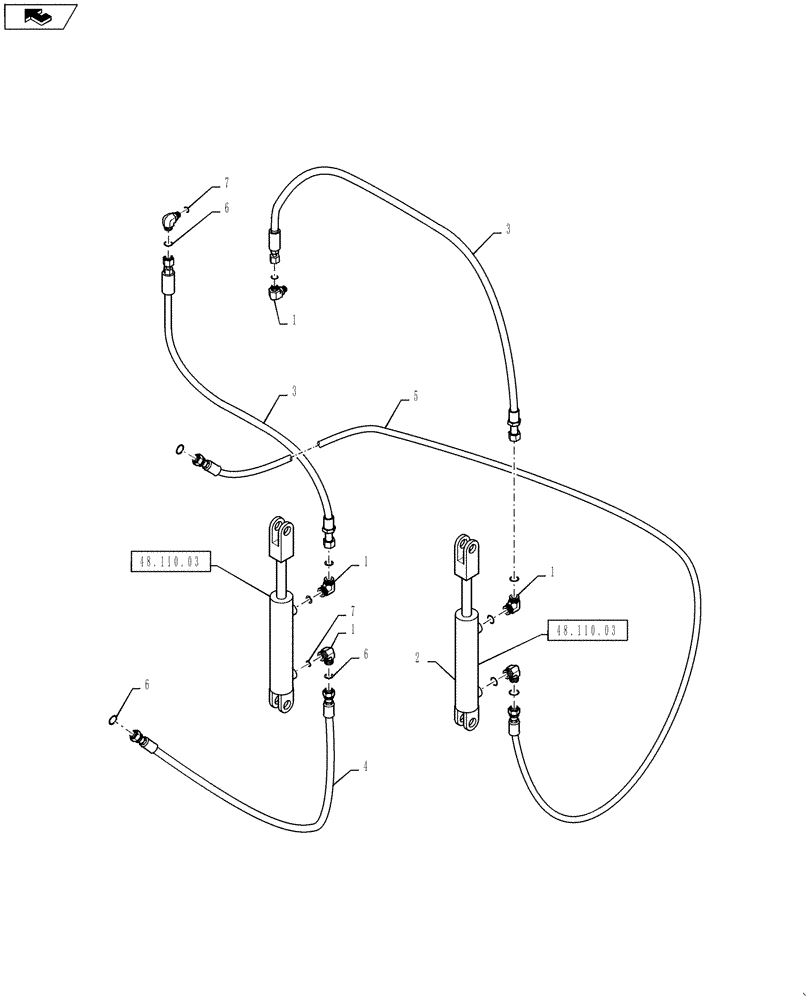

Запчасти Case IH 4430 (35.900.13) - ACTIVE SUSPENSION HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

BN302547

90 ELBOW

9/16-18 ORFS x 7/16-20 ORB, ZND

6шт.

2

BN322741

SLEEVE

HOSE, 1.42 ID X 12, Not Shown, Used Around Hoses Where They Pass Through Trailing Link

2шт.

3

87574410

HOSE

-4 X 133", Active Suspension Cylinder Supply

2шт.

4

BN313061

HOSE,6.35mm ID x 5080mm L, SAE 100R17

-4 X 200", RH Suspension Cylinder To Tank

1шт.

5

BN307828

HOSE ASSY.,6.35mm ID x 4216.4mm L, SAE 100R17

-4 x 166", LH Suspension Cylinder To Tank

1шт.

6

BN305411

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

FOR -4 FFOR

8шт.

7

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

6шт.
