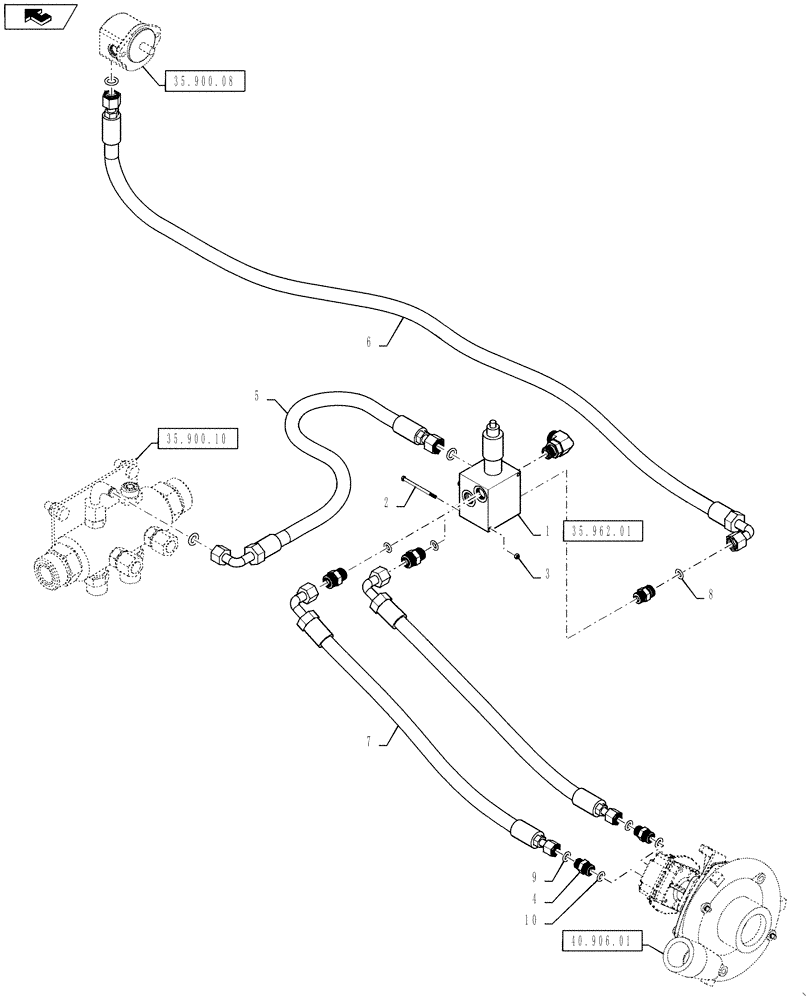

Запчасти Case IH 4430 (35.900.12) - PRODUCT PUMP HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

84333717

VALVE

Product Pump, With Fittings

1шт.

See Fig 35.962.01 For Service Parts Breakdown

1шт.

2

87341834

BOLT,Hex, M6 - 1 x 100mm, Cl 8.8, DOR

M6 x 100, 8.8, DOR

2шт.

3

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

4

BN307930

ADAPTER

1" -14 ORFS x 3/4" -16 ORB

2шт.

5

BN324672

HOSE ASSY.

1-3/16" -12 ORFS Swivel x 1-3/16" -12 ORFS Swivel Short Elbow x 3/4" x 36", Product Pump Valve to Return Manifold

1шт.

6

86986097

HOSE

1-3/16" -12 ORFS Swivel x 1-3/16" -12 ORFS Swivel Short Elbow x 3/4" x 90", Gear Pump to Product Pump Valve

1шт.

7

84329271

HOSE

1" -14 ORFS Swivel x 1-3/16" -12 ORFS Swivel Short Elbow x 3/4" x 39", Product Pump Valve to Product Pump

2шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

6шт.

9

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1", ORFS

2шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

2шт.
