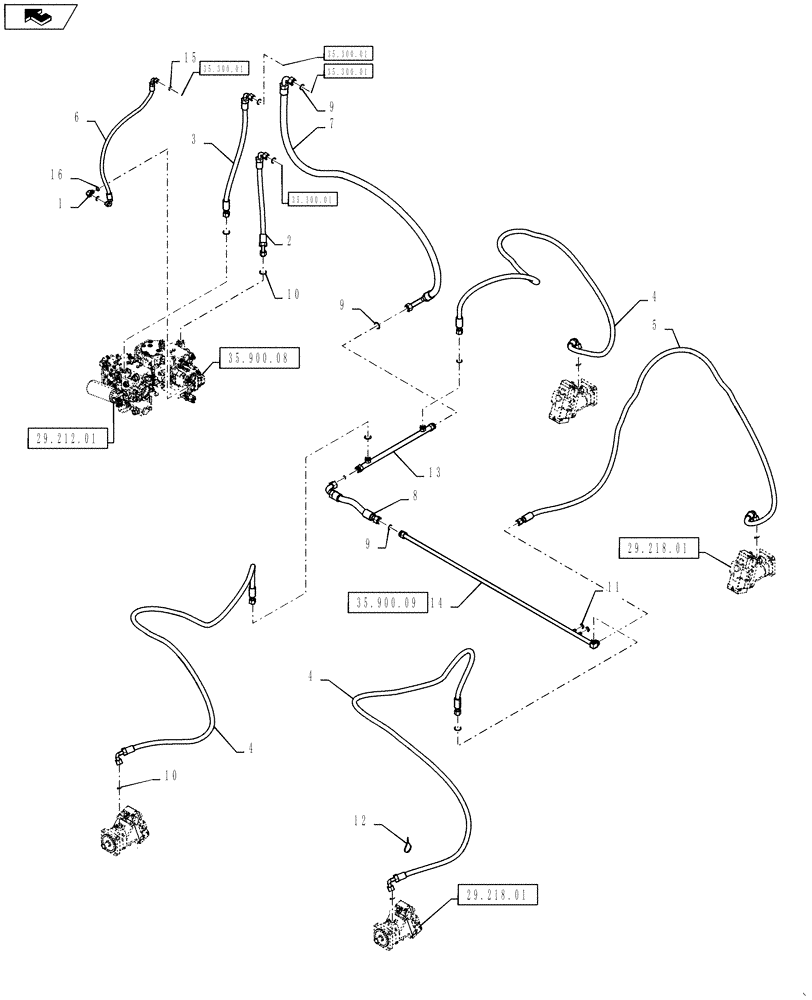

Запчасти Case IH 4430 (35.900.11) - DRIVE MOTOR CASE DRAIN LINES (35) - HYDRAULIC SYSTEMS

1

BN302558

ELBOW

13/16-16 ORFS x 3/4-16 ORB

1шт.

2

84311309

HOSE ASSY.

1-3/16" -12 ORFS Swivel Medium Elbow x 1-3/16" -12 ORFS Swivel 45 Degree Elbow x 3/4" ID x 30.5" Long, RH, Serial Range: Hydrostat-Reservoir

1шт.

3

84311312

HOSE ASSY.

1-3/16" -12 ORFS Swivel Medium Elbow x 1-3/16" -12 ORFS Swivel x 3/4" ID x 35.25" Long, LH, Serial Range: Hydrostat-Reservoir

1шт.

4

BN307807

HOSE ASSY.,19.05mm ID x 3657.6mm L, SAE 100R1

1-3/16" -12 ORFS Swivel Short Elbow x 1-3/16" -12 ORFS Swivel x 3/4" ID x 144" Long, Wheel Motor to Steel Line

3шт.

5

86986086

HOSE

1-3/16" -12 ORFS Swivel Short Elbow x 1-3/16" -12 ORFS Swivel x 3/4" ID x 160" Long, LH Front Wheel Motor to Steel Line

1шт.

6

87485502

HYDRAULIC HOSE

13/16" -16 ORFS Swivel Medium Elbow x 13/16" -16 ORFS Swivel x 1/2" ID x 41" Long, Pressure Comp, Serial Range: Pump-Reservoir

1шт.

7

84326099

HOSE ASSY.

1-7/16" -12 ORFS Swivel Medium Elbow x 1-7/16" -12 ORFS Swivel Long Elbow x 1" ID x 94-7/8" Long, Steel, Serial Range: Lines-Reservoir

1шт.

8

84328548

HOSE ASSY.

1-7/16" -12 ORFS Swivel Short Elbow x 1-7/16" -12 ORFS Swivel x 1" ID x 18" Long, RH Steel Line to Rear Steel Line

1шт.

9

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1-7/16", ORFS

4шт.

10

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

12шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

2шт.

12

BN570007

STRAP

Black Only .12-4.0 Band

8шт.

13

BN319659

TUBE

Case Drain, Rear Steel Line

1шт.

14

84323037

HYD TUBE

Case Drain, RH Steel Line

1шт.

15

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

2шт.

16

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

1шт.
