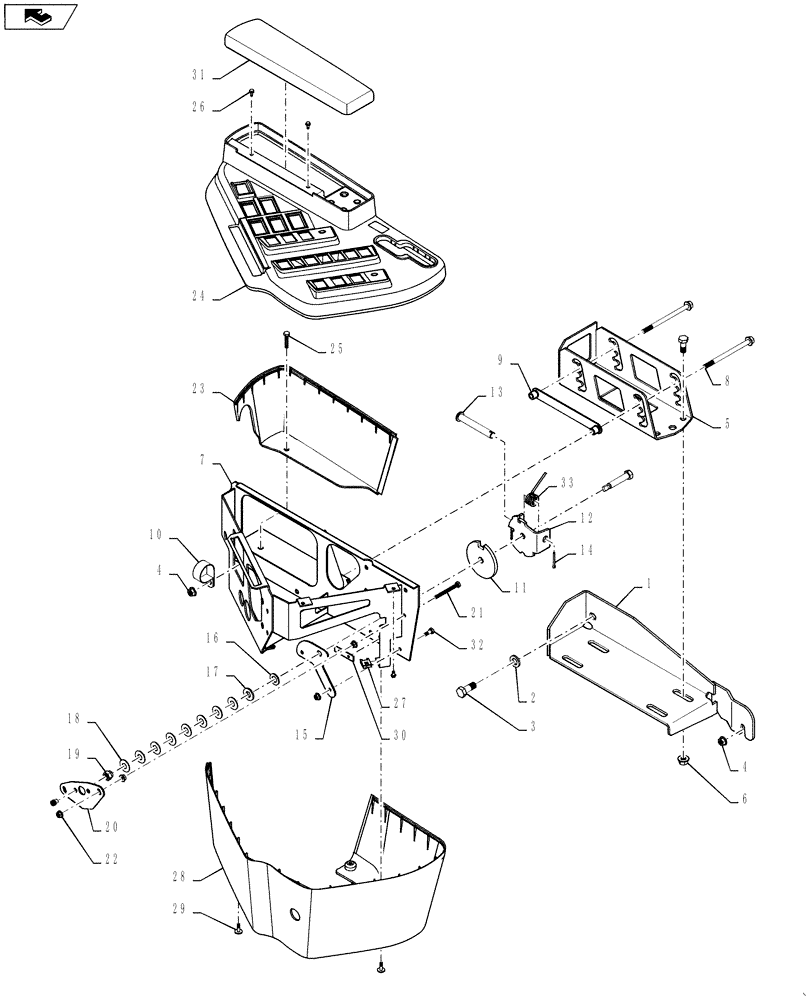

Запчасти Case IH 4420 (01-040) - RH CONSOLE SUB ASSEMBLY Cab Interior

1

BN317670

MOUNTING PLATE

SPX CONTROL CONSOLE

1шт.

2

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

3

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

4

86981461

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

5

BN321613

SLIDE

WELDMENT, LOWER

1шт.

6

87344219

FLANGE NUT,M10 - 1.5, 8, DOR, Flange

4шт.

7

86986776

FRAME

ASSY, RH CONSOLE

1шт.

8

87344205

BOLT,Flg, M8 x 1.25 x 120mm, Cl 10.9

2шт.

9

BN323138

ASSY, CONSOLE

1шт.

10

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

11

251090A1

THRUST WASHER

wear

1шт.

12

87578140

SUPPORT

Prop Lever Control

1шт.

13

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

1шт.

14

80755

COTTER PIN,1/8" OD x 1" L

1шт.

15

87563477

SPACER

Mount, Propel Handle

1шт.

16

159688R91

THRUST BEARING

1шт.

17

87529248

WASHER,0.47" ID x 1" OD x 0.1" Thk

0.469 x 1 x 0.105 HTS DOR HDN

1шт.

18

1994980C1

BELLEVILLE WASHER

Belleville, M10

8шт.

19

BN305066

NUT,7/16" - 14, Gr 8

7/16-14, FLN, G8

1шт.

20

BN318707

MOUNTING PLATE

POTENTOIMETER

1шт.

21

87342146

BOLT,Hex, M6 x 60mm, Cl 8.8

Hex, M6 x 60 Full Thd, CL8.8 DOR

2шт.

22

86511444

FLANGE NUT,Hex, M6 x 1

7шт.

23

130412A1

COVER

skirt, console, rear

1шт.

24

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

See Fig. 01-041

1шт.

25

87342145

BOLT,Hex, M6 x 30mm, Cl 8.8

Hex, M6 x 30 Full Thd CL8.8 DOR

1шт.

26

87343621

SCREW,Hex Wshr Hd, M4 x 10mm, Cl 4.9, Full Thd

4шт.

27

87016567

SPRING NUT,Tinn, U, #10

4шт.

28

118321A2

SKIRT

console cover front

1шт.

29

357481A1

SCREW,Truss, #10 - 16 x 3/4"

#10-16 X 3/4 PH Truss

4шт.

30

342938A1

PLATE

PRP switch backing

2шт.

31

128970A3

ARMREST

assembly, console

1шт.

32

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

33

128593A1

SPRING

torsion, propulsion handle

1шт.

34

PL

PROCURE LOCALLY

Petroleum Jelly

1шт.
