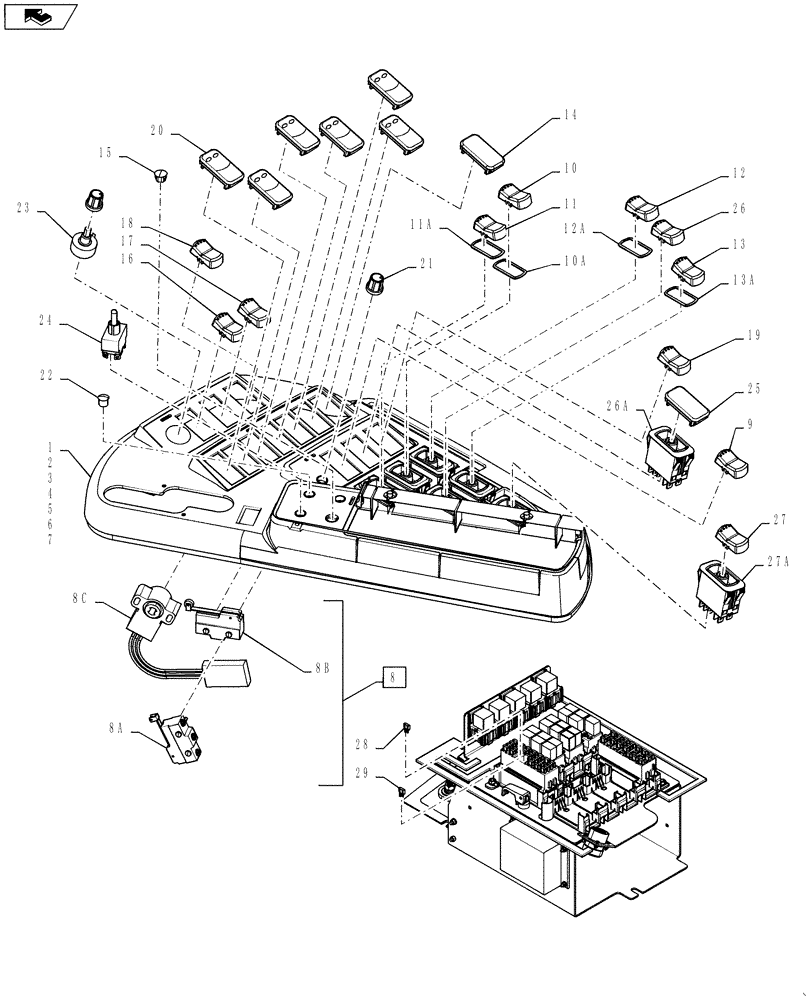

Запчасти Case IH 4420 (01-037) - RH COVER ASSEMBLY W/SWITCHES Cab Interior

1

BN321614

CONSOLE

CONTROL

1шт.

2

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

See Fig. 01-041

1шт.

3

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

See Fig. 01-041

1шт.

4

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

See Fig. 01-041

1шт.

5

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

See Fig. 01-041

1шт.

6

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

See Fig. 01-041

1шт.

7

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

See Fig. 01-041

1шт.

8

128833A2

GUIDE

Propulsion Control Lever

1шт.

8a

BN323495

ADAPTER

Reverse

1шт.

Associated Part of Guide, P/N 128833A2

1шт.

See Fig. 01-039

1шт.

8b

BN323496

TOGGLE SWITCH

neutral safety switch

1шт.

Associated Part of Guide, P/N 128833A2

1шт.

See Fig. 01-039

1шт.

8c

BN322638

SENSOR

Assemblyy, Rotary Position

1шт.

Associated Part of Guide, P/N 128833A2

1шт.

9

BN321912

SWITCH

assembly, foam activate

1шт.

10

BN321914

SWITCH

Boom Height

1шт.

10a

BN325825

SPACER

Switch

1шт.

Associated Part of Switch, P/N BN321914

1шт.

11

BN321913

SWITCH

boom fold LH

1шт.

11a

BN325825

SPACER

Switch

1шт.

Associated Part of Switch, Asm, Boom Fold, LH, P/N BN321913

1шт.

12

BN321915

SWITCH

Boom Fold RH

1шт.

12a

BN325825

SPACER

Switch

1шт.

Associated Part of Switch, Asm, Boom Fold, RH, P/N BN321915

1шт.

13

BN321916

SWITCH

Sparge Pressure

1шт.

13a

BN325825

SPACER

Switch

1шт.

Associated Part of Switch, Assy, Sparge Pressure, P/N BN321916

1шт.

14

BN322626

PLUG

Panel, NGR

1шт.

15

282056A1

PLUG

double d

1шт.

16

BN321907

SWITCH

AIM COMMAND SYSTEM SET

1шт.

17

BN321908

SWITCH

ASM, AIM COMMAND PRESSURE ADJUST

1шт.

18

BN321909

PRESSURE SWITCH

ASM, AIM COMMAND PRESSURE SET

1шт.

19

BN321911

SWITCH

ASM, FENCE ROW

1шт.

20

BN321910

SWITCH

ASM, BOOM SECTION

6шт.

21

118780A1

KNOB

Console Control

1шт.

22

86625127

PLUG,Dome, .375" hole, Nylon

3шт.

23

BN325618

POTENTIOMETER,1000 Ohm

Assembly, Ground Speed

1шт.

24

BN323620

SWITCH

Assembly, Axle In/Out

1шт.

25

87397310

ASSY

1шт.

See Fig. 12-060

1шт.

26

BN325000

SWITCH

rocker, main power

1шт.

26a

87388415

SWITCH

NRG, on-none-off

1шт.

Associated Part of Switch, Main Power, P/N BN325000

1шт.

27

BN322904

SWITCH

rocker, park brake

1шт.

27a

87388415

SWITCH

NRG, on-none-off

1шт.

Associated Part of Switch, Rocker, Park Brake, P/N BN322904

1шт.

27b

87272472

HARDWARE

1шт.

Not Shown

1шт.

28

121412A1

FUSE,10A, Mini, Red

5шт.

29

121413A1

FUSE,15A, Mini, Blue

2шт.

29a

87272473

RH CONSOLE

1шт.

See Fig. 01-032

1шт.

29b

87272471

RH COMPART

1шт.

See Fig. 01-032

1шт.
