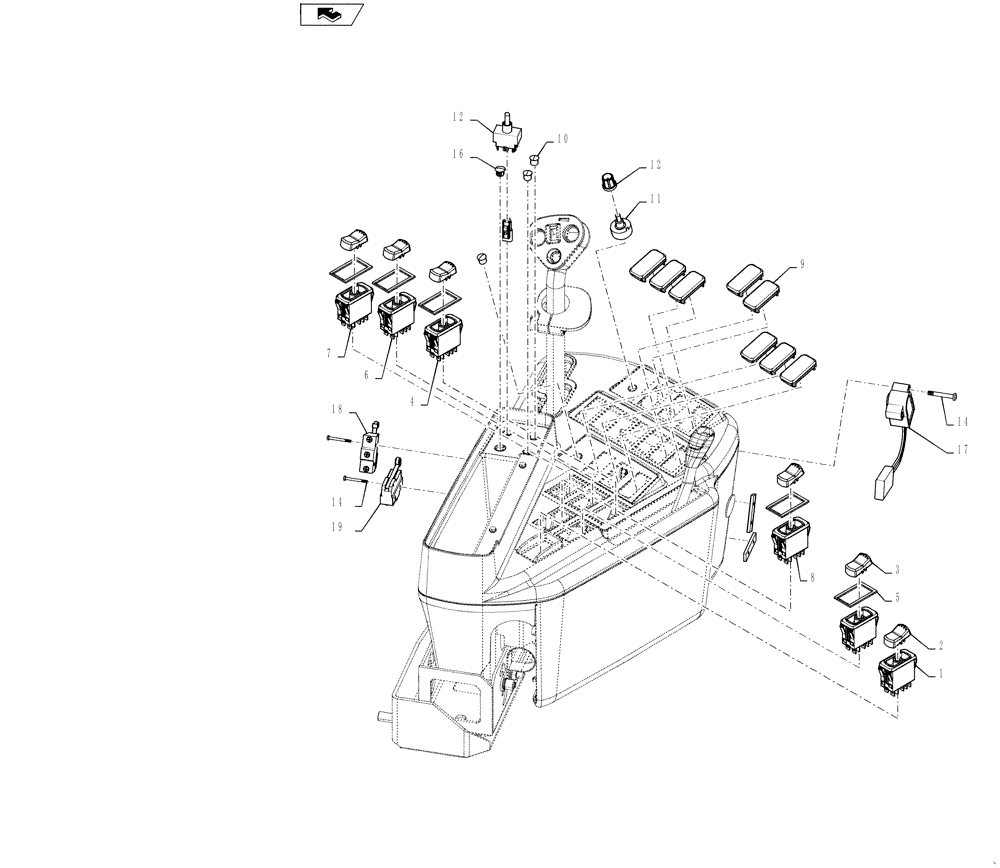

Запчасти Case IH 4420 (01-036) - RH CONSOLE, ELECTRIC Cab Interior

1

87388415

SWITCH

NRG, on-none-off

2шт.

Used with Refs. 2 & 3

1шт.

2

BN322904

SWITCH

rocker, park brake

1шт.

3

BN325000

SWITCH

rocker, main power

1шт.

4

BN321915

SWITCH

Boom Fold RH

1шт.

5

BN325825

SPACER

Switch

6шт.

6

BN321914

SWITCH

Boom Height

1шт.

7

BN321913

SWITCH

boom fold LH

1шт.

8

BN321916

SWITCH

Sparge Pressure

1шт.

9

BN322626

PLUG

Panel, NGR

8шт.

10

86625127

PLUG,Dome, .375" hole, Nylon

3шт.

11

BN325618

POTENTIOMETER,1000 Ohm

Assembly, Ground Speed

1шт.

12

118780A1

KNOB

Console Control

1шт.

13

BN323620

SWITCH

Assembly, Axle In/Out

1шт.

14

87272472

HARDWARE

1шт.

See Fig. 01-038

1шт.

15

87749301

HARNESSES, Start Year: 01-JAN-09

1шт.

15

87272473

HARNESSES, Years: -01-JAN-09

1шт.

16

282056A1

PLUG

double d

1шт.

17

BN322638

SENSOR

Assemblyy, Rotary Position

1шт.

18

BN323495

ADAPTER

Reverse

1шт.

19

BN323496

TOGGLE SWITCH

Neutral Safety Switch

1шт.
