Запчасти Case IH 4420 (01-035) - PACKAGE, CONSOLE, ELECTRICAL, BEGIN MODEL YEAR 2010 Cab Interior

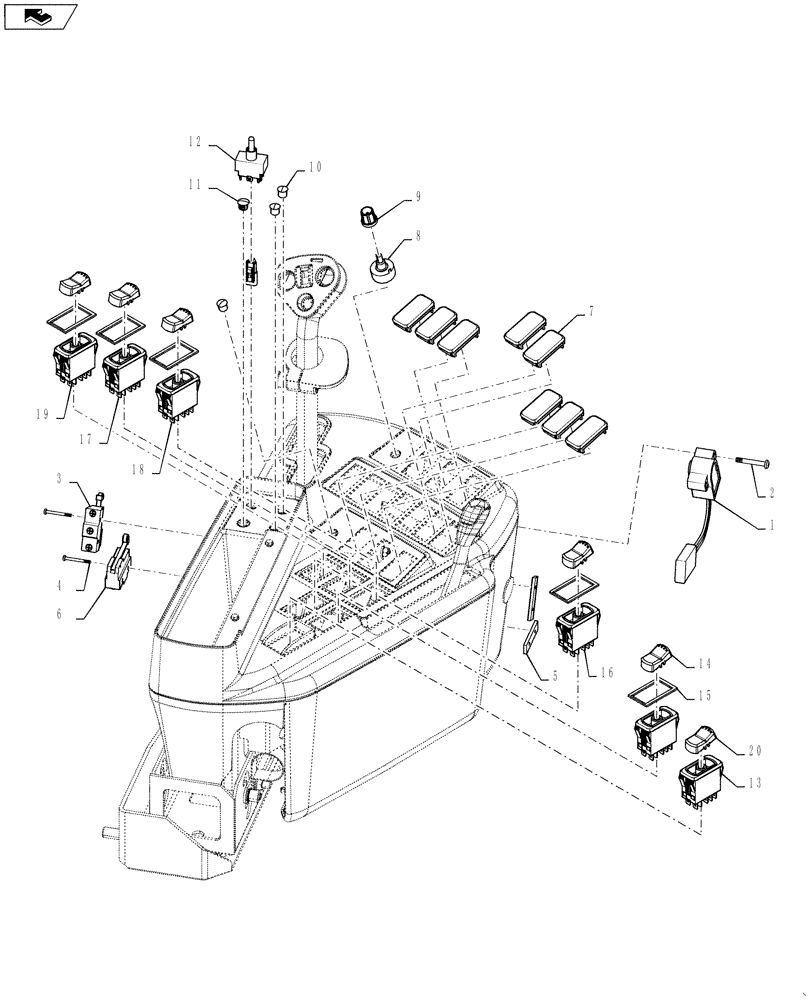

Схема запчастей Case IH 4420 - (01-035) - PACKAGE, CONSOLE, ELECTRICAL, BEGIN MODEL YEAR 2010 Cab Interior
7
6
18
4
2
home
8
9
5
1
20
17
19
16
13
11
15
10
12
3
14

Артикул

Название

Примечание

Количество

1

BN322638

SENSOR

Assemblyy, Rotary Position

1шт.

2

87343613

SCREW,Phil Pan Hd, M5 x 35mm, Cl 4.8, Full Thd

M5 X 35 PHD H 4.8

2шт.

3

BN323495

ADAPTER

Reverse

1шт.

4

86511818

SCREW,Pan HD, M3 x 0.5 x 30mm, Cl 4.8

4шт.

5

87492830

PLATE

Prop Switch Mount

2шт.

6

BN323496

TOGGLE SWITCH

neutral safety switch

1шт.

7

BN322626

PLUG

Panel, NGR

8шт.

8

BN325618

POTENTIOMETER,1000 Ohm

Assembly, Ground Speed

1шт.

9

118780A1

KNOB

Console Control

1шт.

10

86625127

PLUG,Dome, .375" hole, Nylon

3шт.

11

282056A1

PLUG

double d

1шт.

12

BN323620

SWITCH

Assembly, Axle In/Out

1шт.

13

87388415

SWITCH

NRG, on-none-off

2шт.

14

BN325000

SWITCH

rocker, main power

1шт.

15

BN325825

SPACER

Switch

5шт.

16

BN321916

SWITCH

Sparge Pressure

1шт.

17

BN321914

SWITCH

Boom Height

1шт.

18

BN321915

SWITCH

Boom Fold RH

1шт.

19

BN321913

SWITCH

boom fold LH

1шт.

20

BN322904

SWITCH

rocker, park brake

1шт.

21

87749301

PACKAGE, HARNESS GROUP

1шт.

See Fig. 12-030

1шт.

22

BN307971

SEALANT

thread

1шт.

23

BN1243001

LOCTITE

243-31 Removable

1шт.

Выбрано товаров: 24
