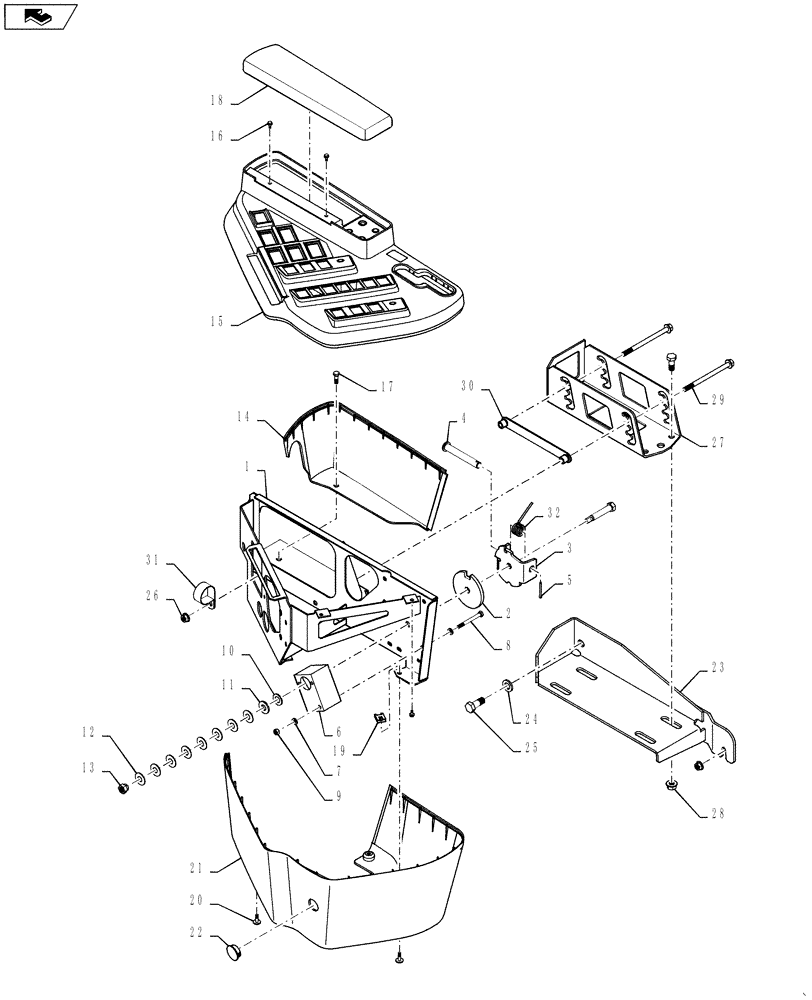

Запчасти Case IH 4420 (01-034) - PACKAGE, CONSOLE, GROUP, BEGIN MODEL YEAR 2010 Cab Interior

1

87492840

MOUNT

MOUNT, CONSOLE,RIVNUTS

1шт.

2

251090A1

THRUST WASHER

wear

1шт.

3

87578140

SUPPORT

Prop Lever Control

1шт.

4

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

1шт.

5

80755

COTTER PIN,1/8" OD x 1" L

1шт.

6

87492829

MOUNT

SENSOR

1шт.

7

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

2шт.

8

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

1шт.

9

353308

NUT,M6 x 1.0, Cl 8

1шт.

10

159688R91

THRUST BEARING

1шт.

11

87529248

WASHER,0.47" ID x 1" OD x 0.1" Thk

0.469 x 1 x 0.105 HTS DOR HDN

1шт.

12

1994980C1

BELLEVILLE WASHER

Belleville, M10

8шт.

13

BN305066

NUT,7/16" - 14, Gr 8

7/16-14,FLN,G8

1шт.

14

130412A1

COVER

skirt, console, rear

1шт.

15

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

See Fig. 01-041

1шт.

16

87343621

SCREW,Hex Wshr Hd, M4 x 10mm, Cl 4.9, Full Thd

4шт.

17

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

18

128970A3

ARMREST

assembly, console

1шт.

19

87016567

SPRING NUT,Tinn, U, #10

4шт.

20

357481A1

SCREW,Truss, #10 - 16 x 3/4"

#10-16 X 3/4 PH Truss

4шт.

21

118321A2

SKIRT

console cover front

1шт.

22

353-426

PLUG,1" Hole, Nylon

1шт.

23

BN317670

MOUNTING PLATE

SPX CONTROL CONSOLE

1шт.

24

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

25

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

26

86981461

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

27

BN321613

SLIDE

LOWER

1шт.

28

87344219

FLANGE NUT,M10 - 1.5, 8, DOR, Flange

4шт.

29

87344205

BOLT,Flg, M8 x 1.25 x 120mm, Cl 10.9

2шт.

30

BN323138

RETAINER, ASSY, CONSOLE

1шт.

31

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

32

128593A1

SPRING

torsion, propulsion handle

1шт.

33

PL

PROCURE LOCALLY

Petroleum Jelly

1шт.
