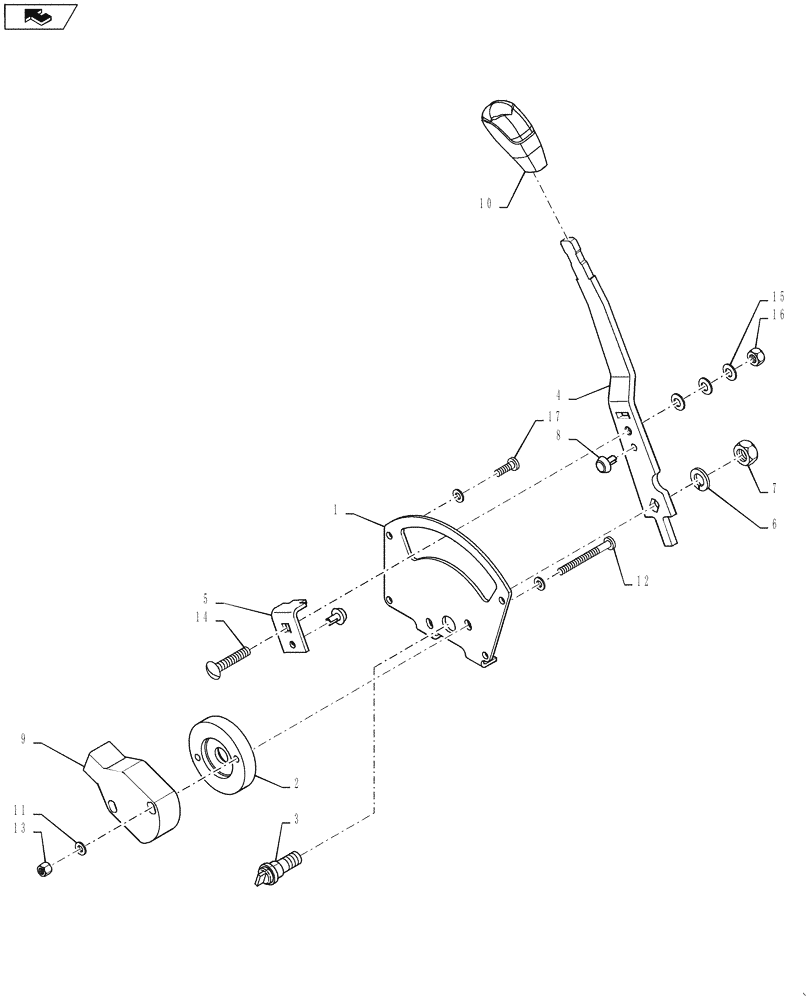

Запчасти Case IH 4420 (01-028) - CONSOLE THROTTLE ASSEMBLY Cab Interior

1

344988A1

PLATE

THROTTLE CONTROL

1шт.

2

302688A1

SPACER

POTENTIOMETER

1шт.

3

344990A1

PIN

DRIVE

1шт.

4

344989A1

LEVER

THROTTLE

1шт.

5

344991A1

BRACKET

FRICTION GLIDE

1шт.

6

892-11010

LOCK WASHER,M10

1шт.

7

86500689

NUT,M10 x 1.5, Cl 10

1шт.

8

259040A1

INSERT

glide, friction device

2шт.

9

231426A1

POTENTIOMETER,2500 Ohm

Throttle

1шт.

10

134071A1

KNOB

Throttle Control

1шт.

11

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

8шт.

12

87016457

SCREW,Phillips Drive, Pan HD, M5 x 50mm, Cl 4.8

2шт.

13

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

2шт.

14

811-6035

CARRIAGE BOLT,Short NK, M6 x 35, Cl8.8, Full Thd

1шт.

15

343204A1

BELLEVILLE WASHER

Bellville .255 id

3шт.

16

353308

NUT,M6 x 1.0, Cl 8

1шт.

17

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

4шт.
