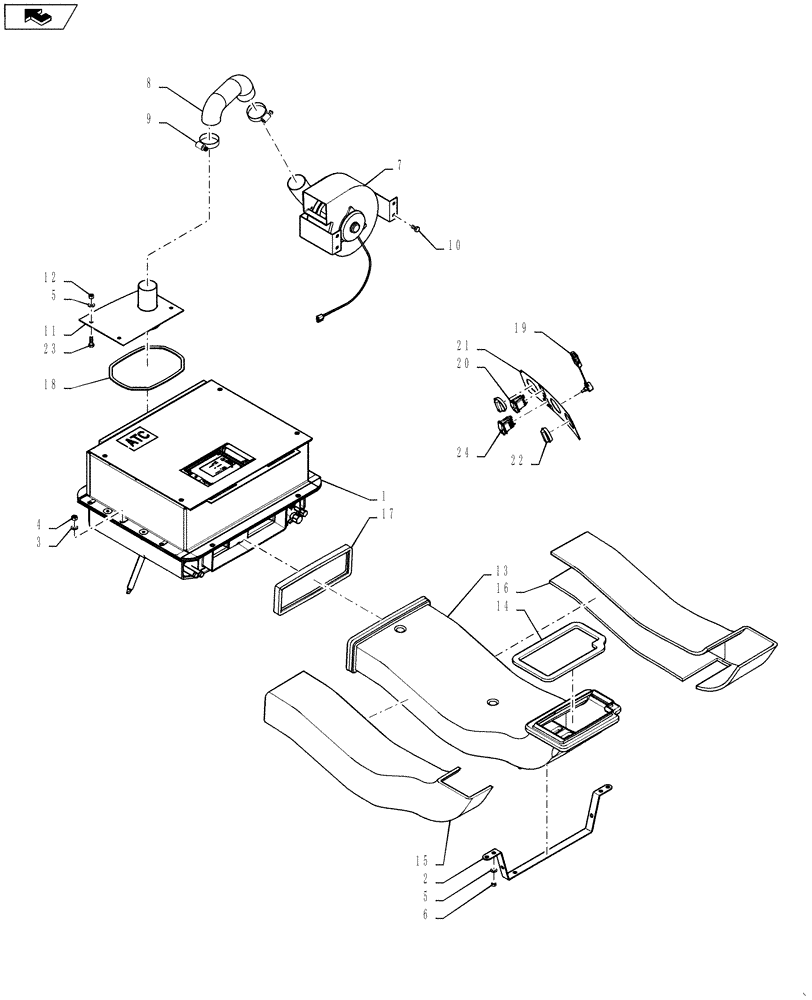

Запчасти Case IH 4420 (01-026) - AIR CONDITIONING, ATC Cab Interior

1

87365878

AIR CONDITIONER

With Auto Temp Control

1шт.

See Fig. 01-027

1шт.

2

384950A2

BRACKET

duct

1шт.

3

140017

WASHER,M10 x 20mm OD x 2mm Thk

6шт.

4

86500689

NUT,M10 x 1.5, Cl 10

6шт.

5

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

6

43362

NUT,M8 x 1.25, Cl 10

2шт.

7

307432A3

BLOWER

assembly

1шт.

7a

307104A3

SUPPORT

blower

1шт.

Parts of Blower Assy, P/N 307432A3

1шт.

7b

313282A1

SEAL

blower support

1шт.

Parts of Blower Assy, P/N 307432A3

1шт.

7c

87107380

BLOWER

Cab Pressurizer

1шт.

Parts of Blower Assy, P/N 307432A3

1шт.

7d

86639262

SCREW,M5 x 8mm

5шт.

Parts of Blower Assy, P/N 307432A3

1шт.

8

307024A4

INTAKE AIR HOSE,57.00 mm ID x 390.00 mm

1шт.

9

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

10

86508616

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

11

393282A2

PLATE ASSY.

air intake assembly

1шт.

12

86528579

NUT,M8 x 1.25

4шт.

13

327851A1

DUCT

HVAC

1шт.

14

278967A3

GASKET

seal, duct to cab floor

1шт.

15

328051A2

FOAM INSULATION

HVAC duct

1шт.

16

328052A2

FOAM INSULATION

HVAC duct

1шт.

17

359670A2

INSULATION,60mm W x 860mm L x 10mm Thk

foam, duct to cab floor

1шт.

18

359586A1

SEAL

filter (floor panel)

1шт.

19

418107A1

POTENTIOMETER,10,000 Ohm

Temperature Control

3шт.

20

87454558

SWITCH

Auto/Manual, Climate Control

1шт.

21

87450974

DECAL

Deluxe Overhead Panel HVAC

1шт.

22

1331046C2

KNOB

Switch Panel

3шт.

23

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

24

87305994

SWITCH

Defog

1шт.
