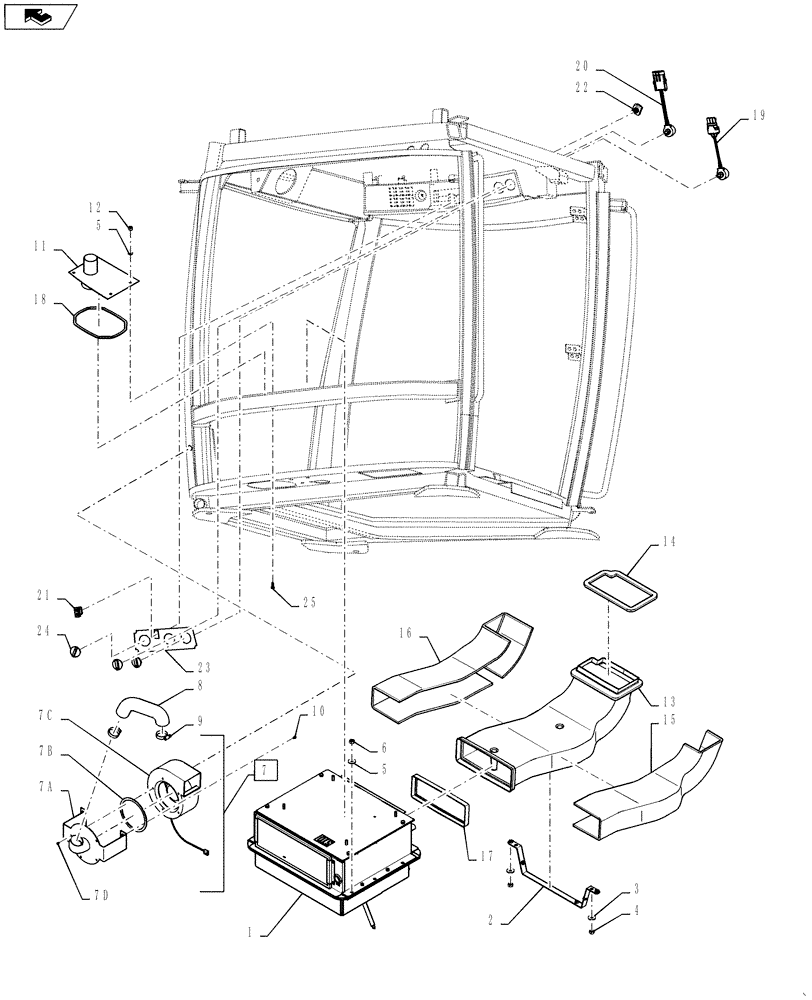

Запчасти Case IH 4420 (01-024) - HVAC, GROUP Cab Interior

1

87580872

AIR CONDITIONER

Standard Unit

1шт.

See Fig. 01-025

1шт.

2

384950A2

BRACKET

duct

1шт.

3

140017

WASHER,M10 x 20mm OD x 2mm Thk

6шт.

4

86500689

NUT,M10 x 1.5, Cl 10

6шт.

5

829-15008

WASHER

9 X 20 X 1.6MM CST ZND

6шт.

6

43362

NUT,M8 x 1.25, Cl 10

2шт.

7

307432A3

BLOWER

assembly

1шт.

7a

307104A3

SUPPORT

blower

1шт.

Parts of Blower Assy, P/N 307432A3

1шт.

7b

313282A1

SEAL

blower support

1шт.

Parts of Blower Assy, P/N 307432A3

1шт.

7c

87107380

BLOWER

Cab Pressurizer

1шт.

Parts of Blower Assy, P/N 307432A3

1шт.

7d

86639262

SCREW,M5 x 8mm

5шт.

Parts of Blower Assy, P/N 307432A3

1шт.

8

307024A4

INTAKE AIR HOSE,57.00 mm ID x 390.00 mm

1шт.

9

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

10

86508616

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

11

393282A2

PLATE ASSY.

air intake assembly

1шт.

12

86528579

NUT,M8 x 1.25

4шт.

13

327851A1

DUCT

HVAC

1шт.

14

278967A3

GASKET

seal, duct to cab floor

1шт.

15

328051A2

FOAM INSULATION

HVAC duct

1шт.

16

328052A2

FOAM INSULATION

HVAC duct

1шт.

17

359670A2

INSULATION,60mm W x 860mm L x 10mm Thk

foam, duct to cab floor

1шт.

18

359586A1

SEAL

filter (floor panel)

1шт.

19

345439A1

POTENTIOMETER,10,000 Ohm

Vent Motor

1шт.

20

418107A1

POTENTIOMETER,10,000 Ohm

Temperature Control

1шт.

21

87405636

SWITCH

Air Conditioning, On/Off

1шт.

22

92100C2

SWITCH

BLOWER MOTOR

1шт.

23

87450973

DECAL

STD, OVERHEAD PANEL HVAC

1шт.

24

1331046C2

KNOB

Switch Panel

3шт.

25

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.
