Запчасти Case IH 4420 (01-023) - INSTRUCTIONAL SEAT ASSEMBLY, LEATHER Cab Interior

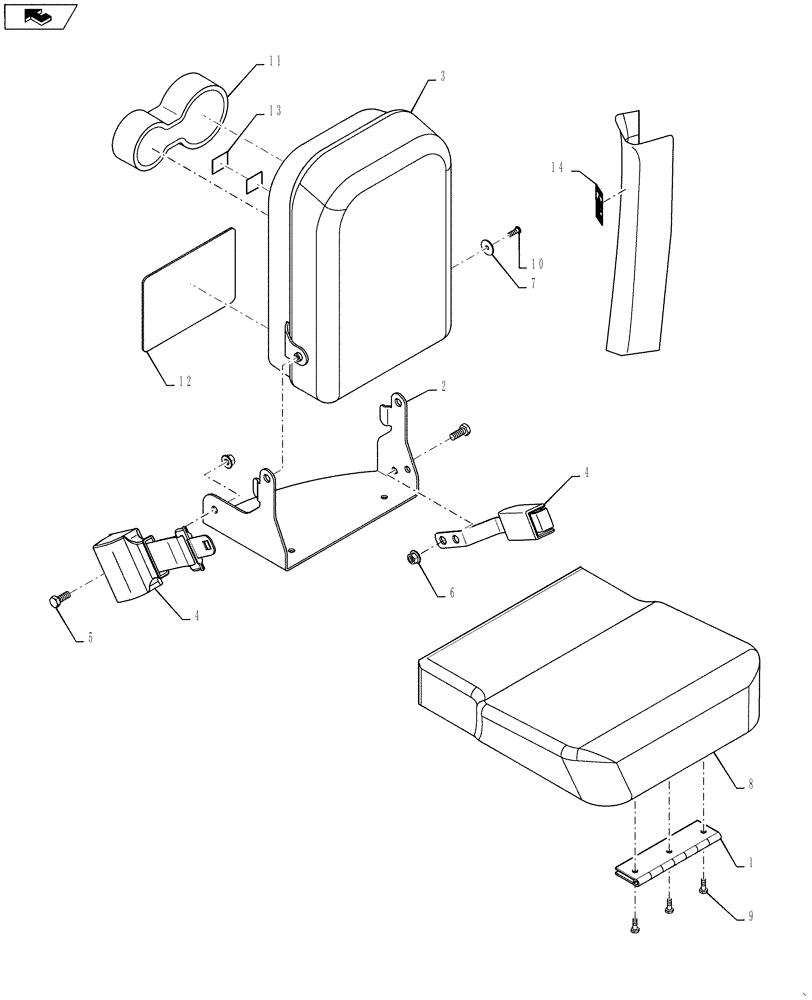

Схема запчастей Case IH 4420 - (01-023) - INSTRUCTIONAL SEAT ASSEMBLY, LEATHER Cab Interior
13
12
9
8
3
1
home
7
6
2
4
4
11
5
14
10

Артикул

Название

Примечание

Количество

1

365674A1

HINGE

instructional seat

1шт.

2

249707A2

BRACKET

instructional seat

1шт.

3

359845A1

SEAT ASSY.

REAR CUSHION

1шт.

4

281926A2

SAFETY BELT

Instructional Seat

1шт.

5

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

3шт.

6

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

7

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

8

359176A1

CUSHION

INSTRUCTIONAL SEAT

1шт.

9

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

3шт.

10

906051R1

HEX SOC SCREW,Btn Hd, M6 x 10mm, Cl 12.9

2шт.

11

369635A2

HOLDER

insert, cup

1шт.

12

394828A1

INSERT

insert, instructional seat

1шт.

13

406682A1

FASTENER

dual lock

2шт.

14

410704A1

WARNING DECAL

Instructional Seat

1шт.

Выбрано товаров: 14
