Запчасти Case IH 4420 (01-021) - SEAT, INSTRUCTIONAL, CLOTH, BEGINNING 01/2009 Cab Interior

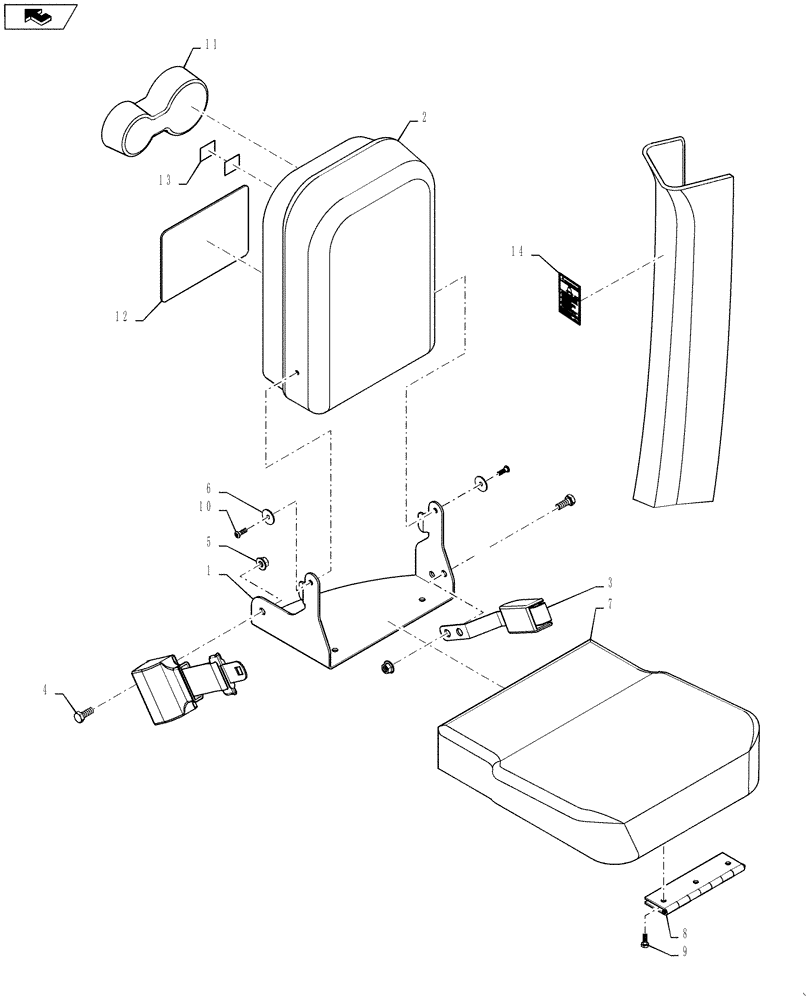

Схема запчастей Case IH 4420 - (01-021) - SEAT, INSTRUCTIONAL, CLOTH, BEGINNING 01/2009 Cab Interior
1
10
3
home
7
8
5
13
4
2
9
12
14
6
11

Артикул

Название

Примечание

Количество

1

249707A2

BRACKET

instructional seat

1шт.

2

87484465

SEAT CUSHION

REAR CUSHION ASSY, Includes Ref. 2A - 2D

1шт.

2a

87484466

SEAT CUSHION

Back

1шт.

2b

252928A2

BRACKET

Rear Cushion

1шт.

2c

358330A1

TRAY

Instructional Seat Storage

1шт.

2d

340-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

3шт.

3

281926A2

SAFETY BELT

Instructional Seat

1шт.

4

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

3шт.

5

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

6

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

7

87484467

SEAT CUSHION

INSTRUCTIONAL SEAT

1шт.

8

365674A1

HINGE

instructional seat

1шт.

9

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

3шт.

10

906051R1

HEX SOC SCREW,Btn Hd, M6 x 10mm, Cl 12.9

2шт.

11

369635A2

HOLDER

insert, cup

1шт.

12

394828A1

INSERT

insert, instructional seat

1шт.

13

406682A1

FASTENER

dual lock

2шт.

14

410704A1

WARNING DECAL

Instructional Seat

1шт.

Выбрано товаров: 18
