Запчасти Case IH 4420 (01-018) - CUSHION ASSEMBLY, SEAT Cab Interior

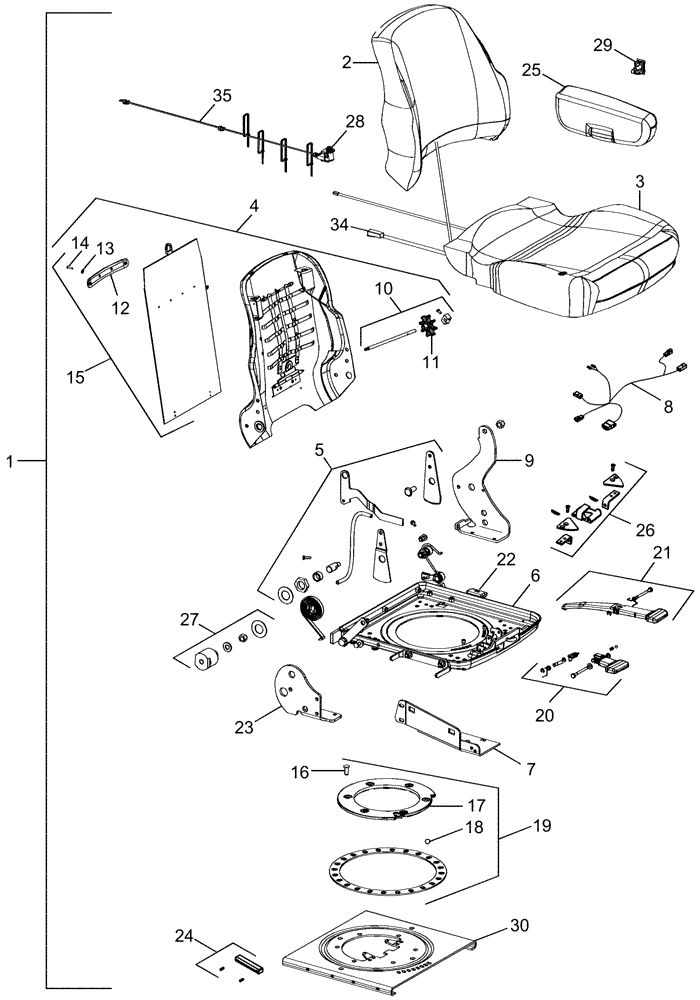

Схема запчастей Case IH 4420 - (01-018) - CUSHION ASSEMBLY, SEAT Cab Interior
4
6
35
34
22
3
21
23
13
30
11
18
9
25
2
29
17
14
1
8
7
24
27
16
10
20
26
28
12
15
5
19

Артикул

Название

Примечание

Количество

1

87347872

SEAT ASSY.

Cloth, Without Heat

1шт.

Includes Refs. 1-30, 34, 35

1шт.

2

373476A1

CUSHION

cloth, without heat

1шт.

3

87347893

SEAT CUSHION

Cloth, Without Heat

1шт.

Includes Ref. 34

1шт.

4

86994155

ASSEMBLY

Backrest

1шт.

Includes Refs. 10, 15

1шт.

5

86994165

SEAT ACCESSORY

Recliner Kit

1шт.

Includes Ref. 22

1шт.

6

NSS

NOT SOLD SEPARAT

PAN, SEAT

1шт.

7

86994157

BRACKET

CONSOLE MOUNT, FRONT

1шт.

8

87347944

SERVICE KIT

Harness, Seat And Suspension

1шт.

9

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

10

87308130

SEAT BACK ADJUST DEV

Lumbar

1шт.

11

87037462

SEAT BACK ADJUST DEV

Lumbar Knob Kit

1шт.

12

NSS

NOT SOLD SEPARAT

SUPPORT, MANUAL HOLDER

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER, 1/8 X 23/64 X 3/64

4шт.

14

NSS

NOT SOLD SEPARAT

RIVET, POP 1/8

4шт.

15

86994172

SERVICE KIT

Manual Holder

1шт.

Includes Refs. 12, 13, 14

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT, SWIVEL, RETAINER

6шт.

17

NSS

NOT SOLD SEPARAT

RETAINER, SWIVEL

1шт.

18

NSS

NOT SOLD SEPARAT

BALL 1/2

24шт.

19

87347936

SERVICE KIT

SWIVEL

1шт.

Includes Refs. 16, 17, 18

1шт.

20

87347942

SERVICE KIT

SWIVEL CONTROL

1шт.

21

87347941

SERVICE KIT

SLIDE CONTROL

1шт.

22

87416475

KNOB

Recliner Control

1шт.

23

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

24

302016A1

PACKAGE,SERVICE

kit, slide pucks

1шт.

25

87347939

SERVICE KIT

Armrest LH, Cloth, Without Heat

1шт.

25a

87667335

ARMREST

seat, LH

1шт.

26

87347934

LATCH

SLIDE

1шт.

27

87396230

BUSHING

Kit, Console

1шт.

28

86400227

SWITCH,Two Connectors, 90° Terminals

Plunger, SPST

1шт.

29

87347940

ROCKER SWITCH

Seat, Valve Combo

1шт.

30

87347956

SERVICE KIT

SWIVEL

1шт.

34

NSS

NOT SOLD SEPARAT

HARNESS

1шт.

35

NSS

NOT SOLD SEPARAT

HARNESS

1шт.

Выбрано товаров: 39
