Запчасти Case IH 4420 (01-017[03]) - LUXURY LEATHER SEAT TOP ASSEMBLY Cab Interior

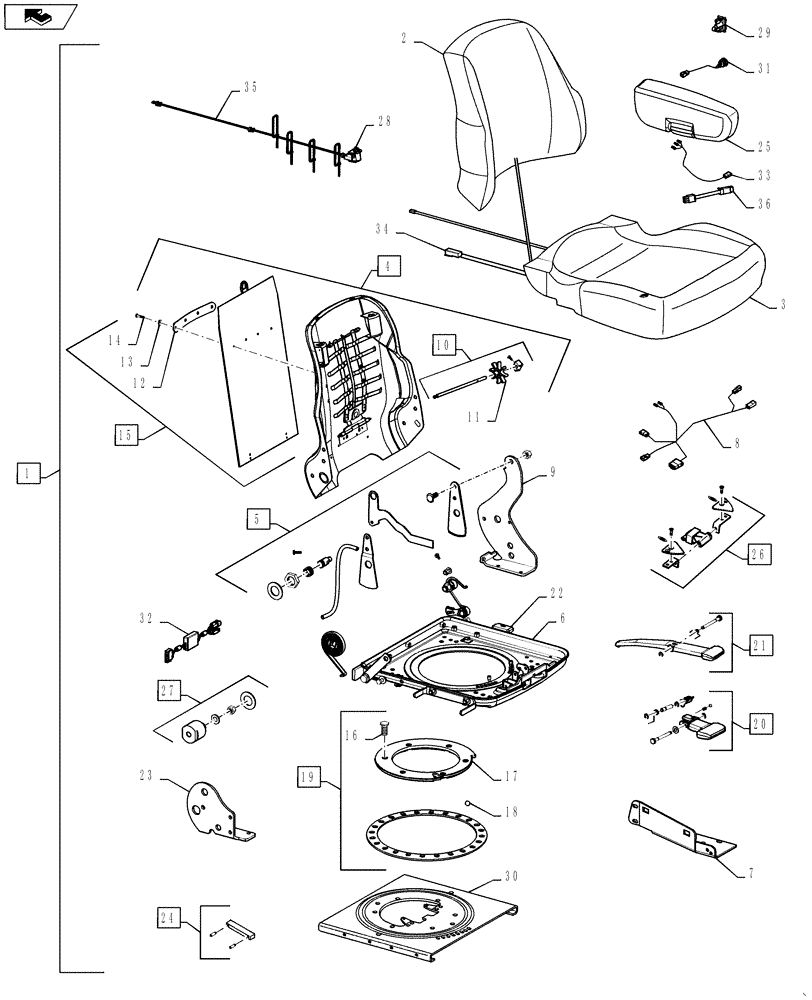

Схема запчастей Case IH 4420 - (01-017[03]) - LUXURY LEATHER SEAT TOP ASSEMBLY Cab Interior
24
15
8
7
3
33
36
5
31
6
27
16
17
26
2
32
25
10
19
20
18
30
11
34
14
12
9
28
1
21
home
13
22
4
23
29
35

Артикул

Название

Примечание

Количество

1

87486630

SEAT

Assembly, Seat Top, Red Leather

1шт.

2

87397614

SEAT CUSHION

Back, Red Leather

1шт.

3

87749241

SEAT CUSHION

Bottom, Red Leather, 3 Position Heat

1шт.

4

86994155

ASSEMBLY

Backrest, Inc. 10, 15

1шт.

5

86994165

SEAT ACCESSORY

Recliner Kit, Inc. 22

1шт.

6

NSS

NOT SOLD SEPARAT

PAN, Seat

1шт.

7

86994157

BRACKET

Console Mount, Front

1шт.

8

84347599

HARNESS

Seat and Suspension

1шт.

9

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

10

87308130

SEAT BACK ADJUST DEV

Lumbar

1шт.

11

87037462

SEAT BACK ADJUST DEV

Lumbar

1шт.

12

NSS

NOT SOLD SEPARAT

SUPPORT, Manual Holder

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER, 1/8 x 23/64 x 3/64

4шт.

14

NSS

NOT SOLD SEPARAT

RIVET, Pop, 1/8

4шт.

15

86994172

SERVICE KIT

Operators Manual, Cloth, Inc. 12, 13, 14

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT, Swivel Retainer

6шт.

17

NSS

NOT SOLD SEPARAT

RETAINER, Swivel

1шт.

18

NSS

NOT SOLD SEPARAT

BALL, 1/2

24шт.

19

87347936

SERVICE KIT

Swivel, Inc. 16, 17,18

1шт.

20

87347942

SERVICE KIT

Swivel Control

1шт.

21

87347941

SERVICE KIT

Slide Control

1шт.

22

87416475

KNOB

Recliner Control

1шт.

23

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

24

302016A1

PACKAGE,SERVICE

Slide Pucks

1шт.

25

87620258

ARMREST

Left Hand, Leather With Heat

1шт.

26

87347934

LATCH

Slide

1шт.

27

87396230

BUSHING

KIT,Console

1шт.

28

86400227

SWITCH,Two Connectors, 90° Terminals

Plunger SPST - Operators Present Switch

1шт.

29

87347940

ROCKER SWITCH

Air Control

1шт.

30

87347956

SERVICE KIT

Swivel

1шт.

31

87749302

SWITCH

Heater, 3 position

1шт.

32

87749303

CONTROL UNIT

Heater

1шт.

33

87749304

HARNESS

Heater

1шт.

34

NSS

NOT SOLD SEPARAT

Cushion Harness

1шт.

35

87568463

WIRE HARNESS

Operator Presence

1шт.

36

87752587

HARNESS

Extension, Heat Controller

1шт.

Выбрано товаров: 36
