Запчасти Case IH 4420 (01-017[02]) - LUXURY LEATHER SEAT ASSEMBLY Cab Interior

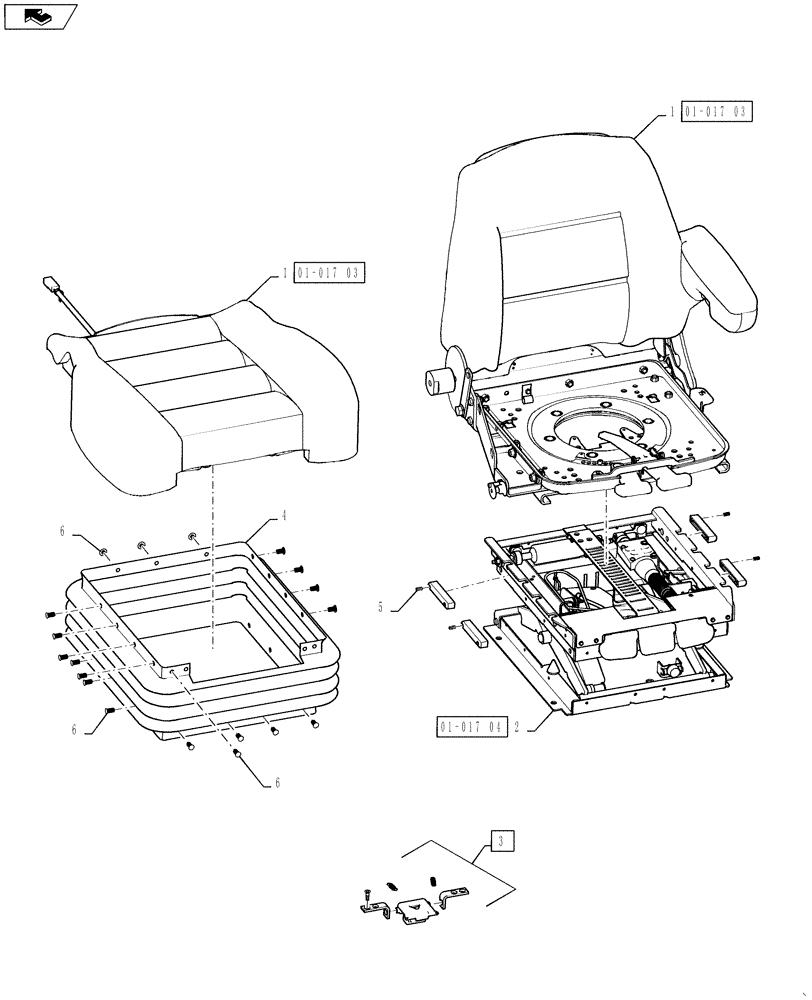

Схема запчастей Case IH 4420 - (01-017[02]) - LUXURY LEATHER SEAT ASSEMBLY Cab Interior
1
home
6
3
6
2
01-017 04
01-017 03
01-017 03
5
6
1
4

Артикул

Название

Примечание

Количество

84162216

SEAT

Complete, Luxury, Leather Seat With Air Suspension And 3 Position Heat

1шт.

1

87486630

SEAT

Assembly, Seat Top, Red Leather

1шт.

See Fig 01-017(03) For Service Parts Breakdown

1шт.

2

84406039

SERVICE KIT

Complete Air Suspension

1шт.

See Fig 01-017(04) For Service Parts Breakdown

1шт.

3

87347934

LATCH

Slide, Kit

1шт.

4

87347943

SERVICE KIT

Seat Boot

1шт.

5

302016A1

PACKAGE,SERVICE

Slide Puck Kit

4шт.

6

333659A1

PACKAGE,SERVICE

Boot Button Kit

1шт.

Выбрано товаров: 9
