Запчасти Case IH 4420 (01-017[01]) - LUXURY LEATHER SEAT MOUNTING Cab Interior

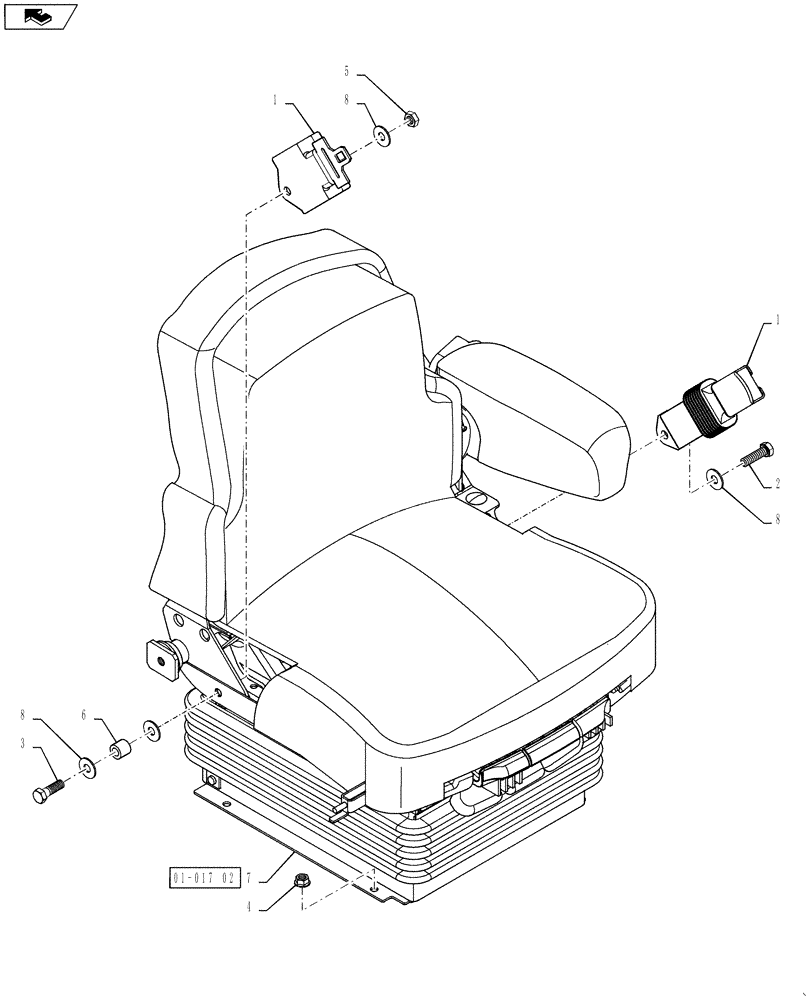

Схема запчастей Case IH 4420 - (01-017[01]) - LUXURY LEATHER SEAT MOUNTING Cab Interior
home
2
1
4
6
5
7
3
8
8
01-017 02
1
8

Артикул

Название

Примечание

Количество

1

444877A1

SAFETY BELT ,50.8mm W x 1737.86mm L

1шт.

2

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

1шт.

3

806-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9

1шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

5

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

6

87313413

TUBE SPACER

.875 x .5

1шт.

7

84162216

SEAT

Complete, Luxury, Leather Seat With Air Suspension And 3 Position Heat

1шт.

See Fig 01-017(02) For Service Parts Breakdown

1шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

Выбрано товаров: 9
