Запчасти Case IH 4420 (01-016[03]) - SEAT TOP ASSEMBLY, SN Y9T026002 AND AFTER Cab Interior

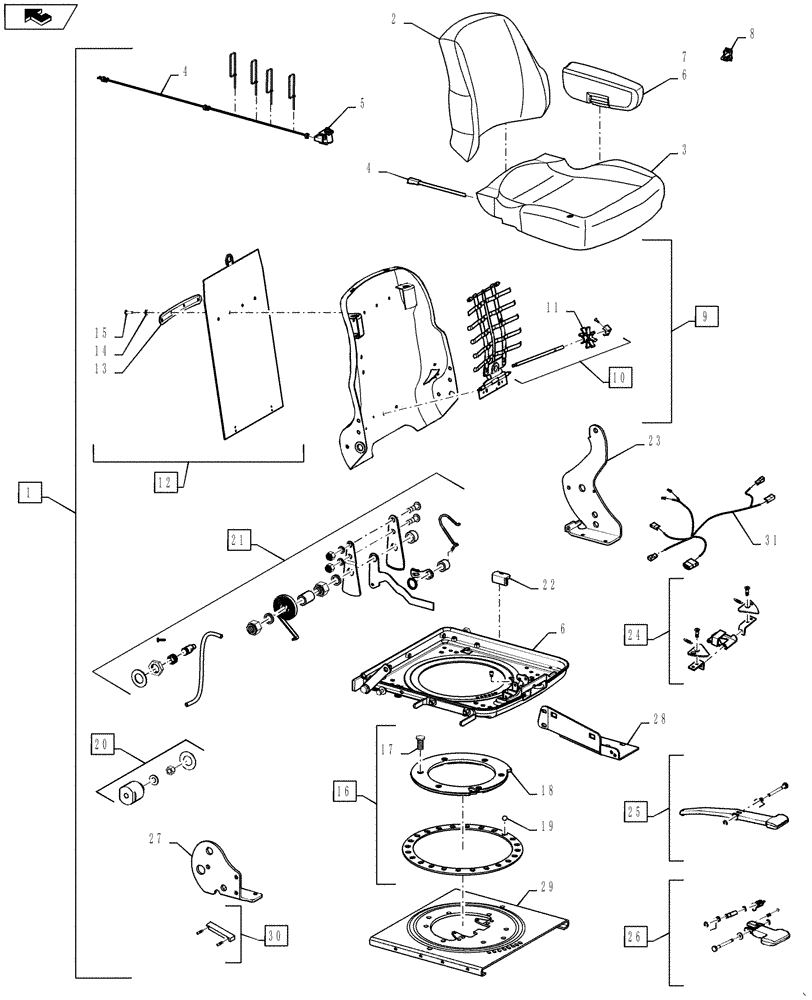

Схема запчастей Case IH 4420 - (01-016[03]) - SEAT TOP ASSEMBLY, SN Y9T026002 AND AFTER Cab Interior
25
18
7
26
9
20
home
12
15
4
6
4
16
6
24
10
14
27
1
29
2
23
30
28
5
22
8
13
11
31
3
19
21
17

Артикул

Название

Примечание

Количество

1

84162220

SEAT

Assembly, Top

1шт.

Excludes Ref. 24, 30, & 31

1шт.

2

84120474

CUSHION

Back, (CIH Wheat)

1шт.

3

84120473

SEAT CUSHION

(CIH Wheat)

1шт.

Includes Ref. 4 & 5

1шт.

4

87568463

WIRE HARNESS

Operator Presence

1шт.

5

86400227

SWITCH,Two Connectors, 90° Terminals

Operator Presence, W/ Boot

1шт.

6

87347939

SERVICE KIT

LH Armrest Assembly

1шт.

7

87667335

ARMREST

Pad, LH

1шт.

8

87347940

ROCKER SWITCH

Height Adjust Switch, W/ Valve

1шт.

9

86994155

ASSEMBLY

Back Pan, W/ Lumbar, W/ Pouch

1шт.

Includes Ref. 10, 11, & 12

1шт.

10

87308130

SEAT BACK ADJUST DEV

Lumbar Kit, Without Knob

1шт.

11

87037462

SEAT BACK ADJUST DEV

Lumbar Knob Kit

1шт.

12

86994172

SERVICE KIT

Manual Holder

1шт.

Includes Ref. 13, 14, & 15

1шт.

13

NSS

NOT SOLD SEPARAT

Manual Holder

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER, 1/8 X 23/64 X 3/64

4шт.

15

NSS

NOT SOLD SEPARAT

RIVET, Pop, 1/8

4шт.

16

87347936

SERVICE KIT

Swivel

1шт.

Includes Ref. 17, 18, & 19

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT, Swivel Retainer

6шт.

18

NSS

NOT SOLD SEPARAT

RETAINER, Swivel

1шт.

19

NSS

NOT SOLD SEPARAT

BALL, 1/2

24шт.

20

87396230

BUSHING

Console, Kit

1шт.

21

86994165

SEAT ACCESSORY

Recliner Kit

1шт.

Includes Ref. 15

1шт.

22

87416475

KNOB

Recliner

1шт.

23

NSS

NOT SOLD SEPARAT

BRACKET, Arm Rest

1шт.

24

87347934

LATCH

Seat Slide

1шт.

25

87347941

SERVICE KIT

Slide Control

1шт.

26

87347942

SERVICE KIT

Swivel Control

1шт.

27

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

28

86994157

BRACKET

Console Mounting, Front

1шт.

29

87347956

SERVICE KIT

PLATE, Lower Swivel

1шт.

30

302016A1

PACKAGE,SERVICE

Slide Puck

1шт.

31

84143780

HARNESS

Suspension

1шт.

Выбрано товаров: 37
