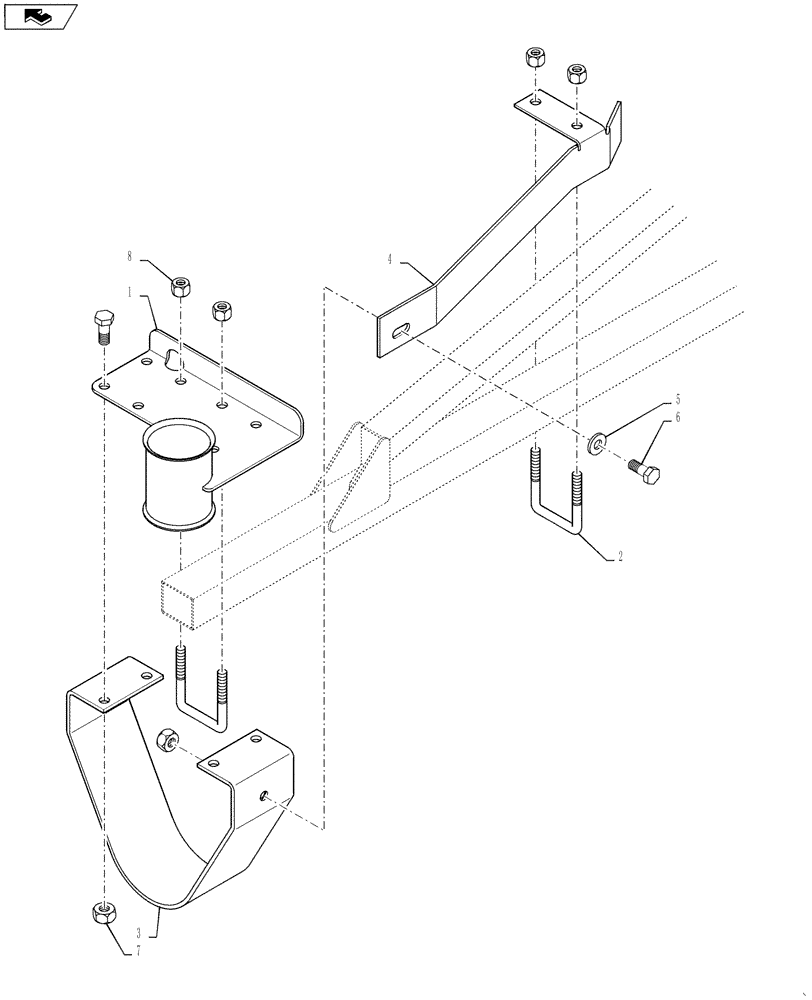

Запчасти Case IH 4420 (08-032) - SKID GROUP, RIGHT, BSN Y9T026406 (09) - BOOMS

1

87266615

MOUNTING PARTS

Outer Right Frame Drop

1шт.

2

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

3шт.

3

BN313335

SKID/SHOE

BOOM BREAKAWAY

1шт.

4

BN319662

GUARD

RH OUTER BOOM SKID

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

6

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

5шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

5шт.

8

87343970

NUT,3/8"-16, G8, DOR

6шт.
