Запчасти Case IH 4420 (08-026) - HINGE GROUP, 120’ BOOM (09) - BOOMS

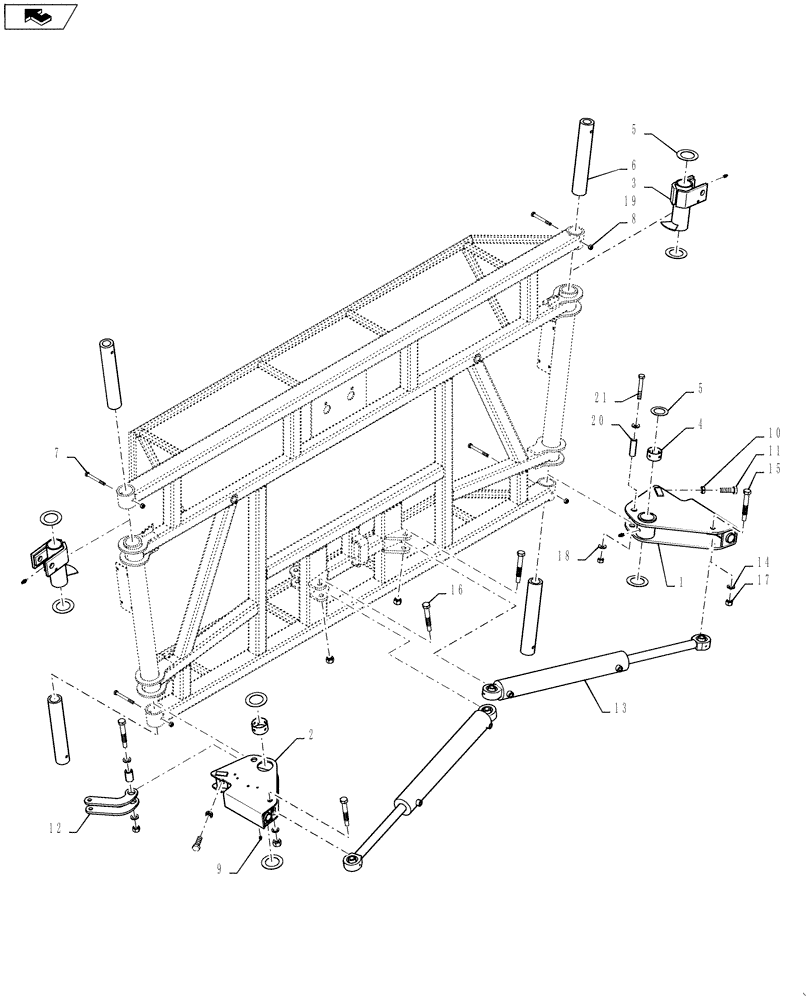

Схема запчастей Case IH 4420 - (08-026) - HINGE GROUP, 120’ BOOM (09) - BOOMS
13
14
16
18
21
19
9
3
12
1
11
5
17
2
15
home
6
5
4
10
8
20
7

Артикул

Название

Примечание

Количество

1

87709500

PIVOT

INNER, LH

1шт.

2

87709501

PIVOT

INNER, RH

1шт.

3

87543409

MOUNTING PARTS

UPPER CYLINDER

2шт.

4

87675983

GROOVED BUSHING,64.11mm ID x 76.43mm OD x 114mm L

BOOM PIVOT

2шт.

5

BN302048

SHIM,64.01mm ID x 98.55mm OD x 2.55mm Thk

3.88" od x 2.52 id x 14 GA

8шт.

6

BN306646

TUBE

Inner Pivot

4шт.

7

87695425

BOLT,Hex, M12 x 110mm, Cl 10.9

M12 X 110, 10.9, DOR

4шт.

8

87695422

LOCK NUT

M12-1.75, 10.9, DOR

4шт.

9

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

8шт.

10

87310319

JAM NUT,1"-14, G8

2шт.

11

87644287

BOLT

1-14 x 3, GR8, DOR

2шт.

12

87708068

ARM

INNER BREAKAWAY

2шт.

13

87272004

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 549.4mm Stroke

3.00 x 21.63 x 1.5

4шт.

See Fig. 07-007

1шт.

13

87272004R

REMAN-HYD CYLINDER

4420 PATRIOT SPRAYER, 3.00 x 21.63 x 1.5 (8/06-9/11)

4шт.

13

87272004C

CORE-HYD CYLINDER

Return Number

4шт.

14

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, HDN, DOR

4шт.

15

BN310280

BOLT

M20 X 125 Shank, Cutoff

2шт.

16

BN310279

BOLT

M20 X 108 SHANK, CUTOFF

6шт.

17

86980518

NUT,Hex, M20 - 2.5, Cl 8.8, DOR

1шт.

18

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm, HDN, DOR

8шт.

19

331-37

SPARE PART

FLUID, 1 lb. Lithium #2 grease

1шт.

20

87708067

BUSHING,20.63mm ID x 31.75mm OD x 101mm L

PIVOT

2шт.

21

87341999

BOLT,Hex, M20 x 140mm, Cl 10.9

M20 x 140, CL10.9, DOR

2шт.

Выбрано товаров: 24
