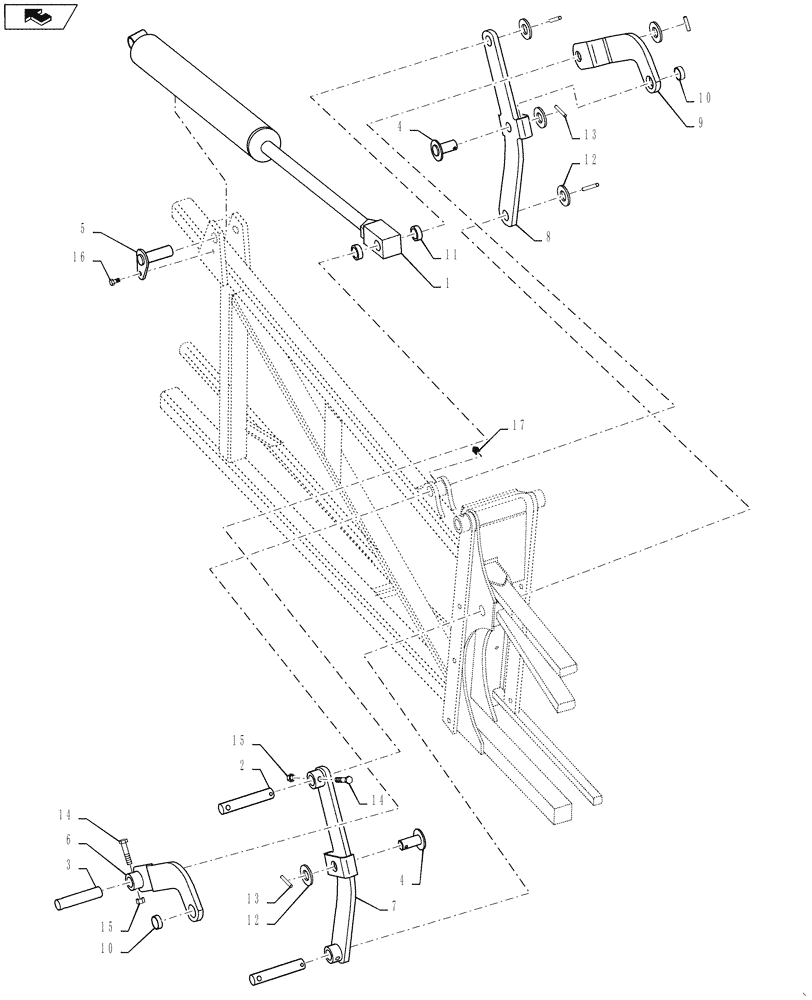

Запчасти Case IH 4420 (08-025) - HINGE GROUP, OUTER BOOM (09) - BOOMS

1

87655640

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 511.05mm Stroke

2.25 x 20.12 x 1.25, Complete, Start Year: 01-JAN-09

1шт.

See Fig. 07-008

1шт.

1

87266449

CYLINDER,Double Acting, 31.75mm Rod, 508mm Stroke

Hydraulic, 2 x 20 x 1.25, Complete, Years: -01-JAN-09

1шт.

See Fig. 07-009

1шт.

1

87266449R

REMAN-HYD CYLINDER

4420 PATRIOT SPRAYER, Hydraulic, 2 x 20 x 1.25, Complete, OUTER BOOM (8/06-9/11)

1шт.

1

87266449C

CORE-HYD CYLINDER

Return Number

1шт.

2

BN307218

PIN,25.4mm OD x 143mm L

1 ODX5.63 ETD150

2шт.

3

BN307217

PIN,25.4mm OD x 120.65mm L

1 OD X 4.63 ETD150

1шт.

4

BN310118

PIN

2шт.

5

BN307223

PIN,25.4mm OD x 85.85mm L

CYL

1шт.

6

BN305624

LINKAGE

BAR

1шт.

7

BN305623

LINKAGE

BAR

1шт.

8

BN305622

LINKAGE

BAR

1шт.

9

BN311368

LINKAGE

FORMED LH

1шт.

10

BN69918

BUSHING

SPRING (CONNEX)

2шт.

11

BN311573

SPACER,26.16mm ID x 35.05mm OD x 10.41mm L

2шт.

12

87528986

WASHER,1.03" ID x 2" OD x 0.13" Thk

1 1/32" x 2" x .134"

5шт.

13

BN52330

PIN, ROLL

1/4 X 1 3/4

5шт.

14

87341824

BOLT,Hex, M10 x 170mm, Cl 8.8

M10 x 55, 8.8, DOR

3шт.

15

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

3шт.

16

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

17

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

1шт.

18

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.
