(01-016[02]) - DELUXE SEAT ASSEMBLY, SN Y9T026002 AND AFTER

Запчасти Case IH 4420 (01-016[02]) - DELUXE SEAT ASSEMBLY, SN Y9T026002 AND AFTER Cab Interior

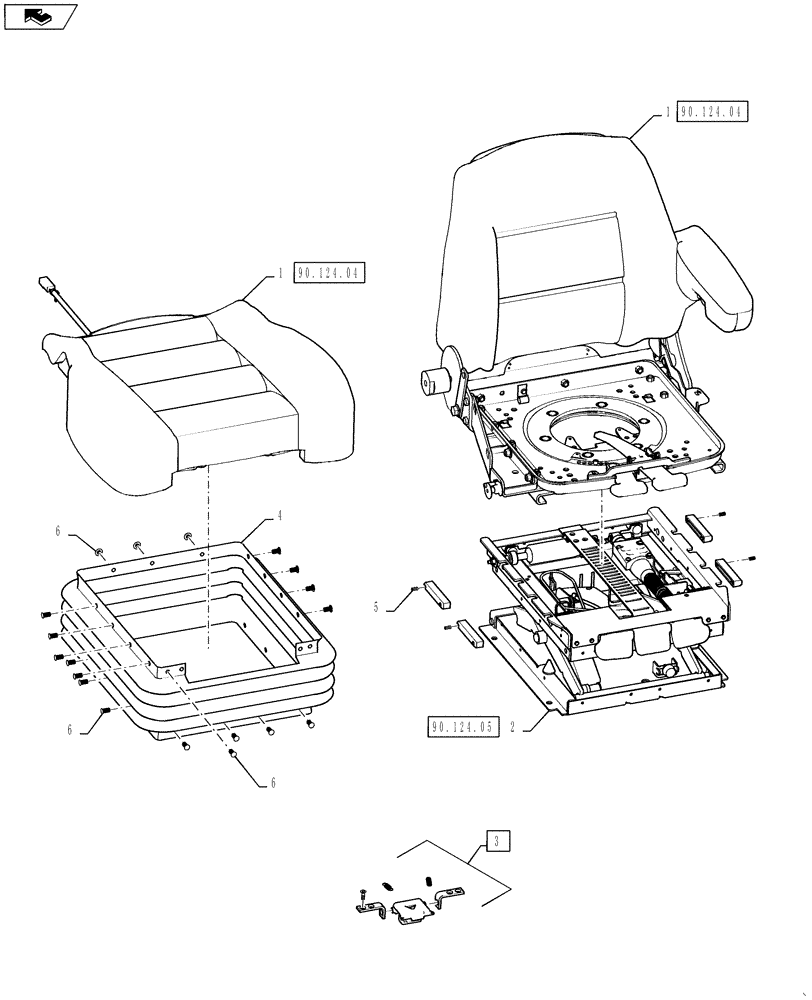

Схема запчастей Case IH 4420 - (01-016[02]) - DELUXE SEAT ASSEMBLY, SN Y9T026002 AND AFTER Cab Interior
4
home
6
5
3
1
90.124.04
90.124.05
90.124.04
6
1
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

84138931

DRIVER SEAT

Complete, Deluxe, Cloth Seat With Air Suspension

1шт.

1

84162220

SEAT

Assembly, Top

1шт.

See Fig 01-016(03) For Service Parts Breakdown

1шт.

2

84155868

SERVICE KIT

Suspension, AIR 2000

1шт.

See Fig 01-016(04) For Service Parts Breakdown

1шт.

3

87347934

LATCH

Slide, Kit

1шт.

4

87347943

SERVICE KIT

Seat Boot

1шт.

5

302016A1

PACKAGE,SERVICE

Slide Puck Kit

4шт.

6

333659A1

PACKAGE,SERVICE

Boot Button Kit

1шт.
