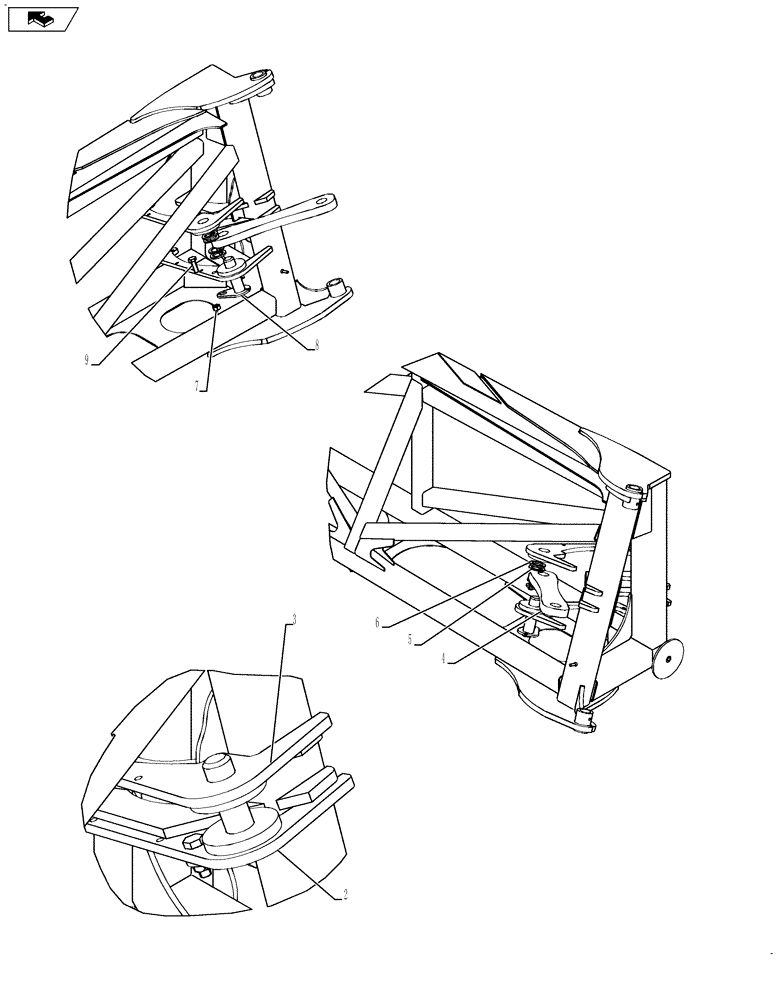

Запчасти Case IH 4420 (08-009[02]) - INNER BOOM UPDATE KIT, RH, 120 BOOM, BSN YAT028322 (09) - BOOMS

1

84319020

KIT

Inner Boom Update Kit

1шт.

Includes Ref 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

Link, Inner Fold Lower, RH

1шт.

3

NSS

NOT SOLD SEPARAT

Link, Inner Fold Upper, RH

1шт.

4

84306382

ARM

Single

2шт.

5

87564722

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1.016 X 1.50 X .075 CST DOR

4шт.

6

87564721

WASHER,1.02" ID x 1.5" OD x 0.12" Thk

1.016 X 1.50 X .134, CST, DOR

4шт.

7

87344003

NUT,M10-1.5, 10, DOR

2шт.

8

BN307223

PIN,25.4mm OD x 85.85mm L

Locking, 85mm long

2шт.

9

87695423

BOLT,Hex, M10 x 30mm, Cl 10.9

M10 X 30 Full 10.9 DOR

2шт.
