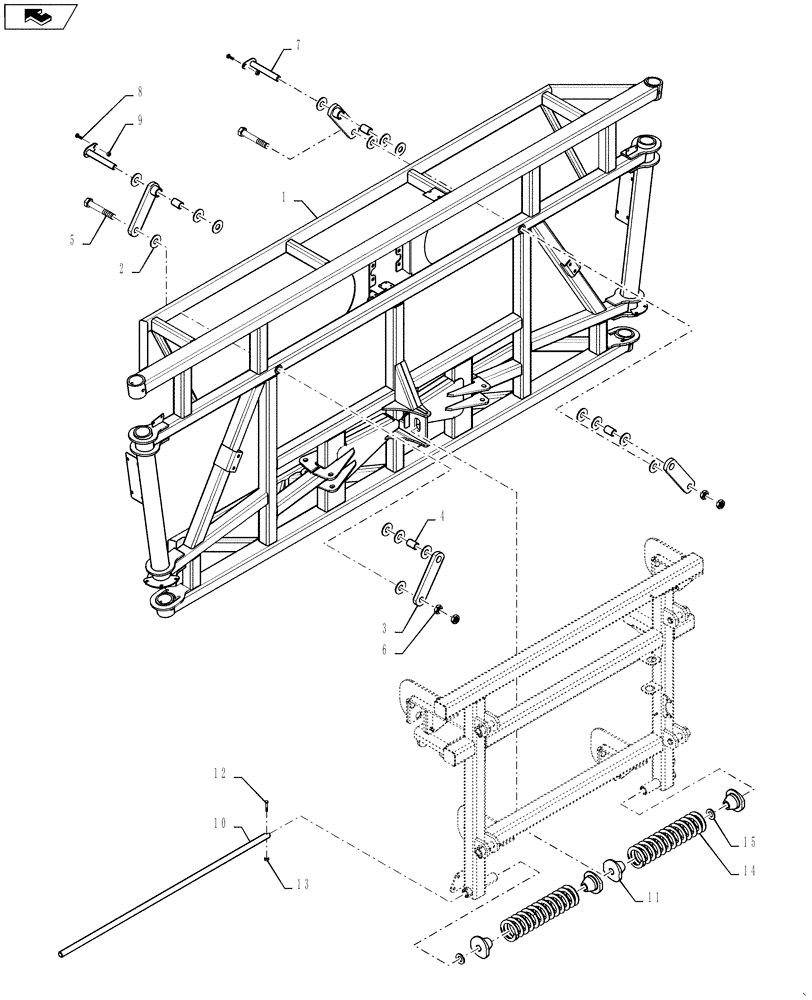

Запчасти Case IH 4420 (08-006) - CENTER SECTION MOUNTING, 120’ BOOM (09) - BOOMS

1

87537733

MAST ASSEMBLY

CENTER SECTION, WIDE

1шт.

2

87529124

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

1.062 x 2.50 x .165 CST, DOR

16шт.

3

87707145

HANGER

Center Boom

4шт.

4

87714127

BUSHING

INSERT BUSHING

4шт.

5

87310330

BOLT

1-14 x 6, Gr 5

2шт.

6

87310319

JAM NUT,1"-14, G8

4шт.

7

BN306785

PIN

WELDMENT

2шт.

8

87695423

BOLT,Hex, M10 x 30mm, Cl 10.9

M10 X 30 FULL 10.9 DOR

2шт.

9

87344003

NUT,M10-1.5, 10, DOR

2шт.

10

87543736

ROD

SPRING RETAINER

1шт.

11

87536126

RETAINER

SPRING

4шт.

12

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

13

9991588

NUT,M8 x 1.25, Cl 8

1шт.

14

87700743

COMPRESSION SPRING

BOOM

2шт.

15

87529235

WASHER,1.06" ID x 2" OD x 0.21" Thk

1.0625 x 2 x 0.209, HTS, DOR

2шт.
