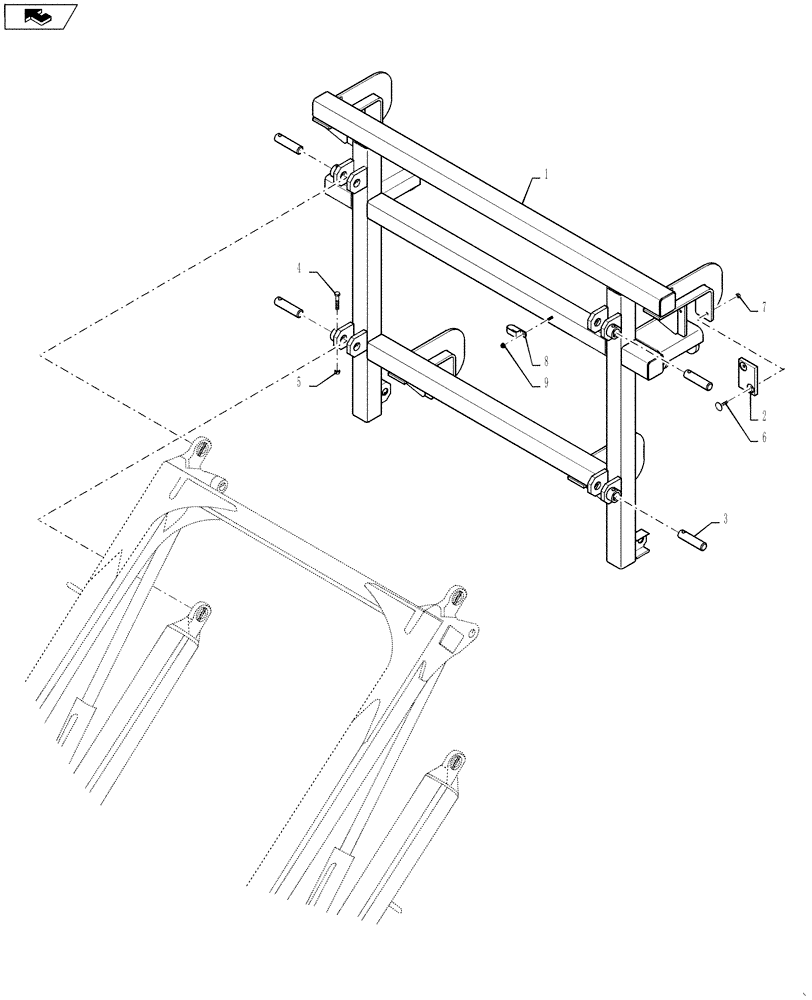

Запчасти Case IH 4420 (08-004) - MAST GROUP, BSN Y9T026174 (09) - BOOMS

1

BN321111

MAST ASSEMBLY

WELDMENT

1шт.

2

BN306777

PAD

BOOM SLIDE

8шт.

3

BN307221

PIN

1.125 OD X4.38

4шт.

4

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

6

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

16шт.

7

87343959

NUT,5/16" - 18, GR B, DOR

16шт.

8

R54363

CLAMP

double, DIA. 23.8

1шт.

9

86511444

FLANGE NUT,Hex, M6 x 1

1шт.
