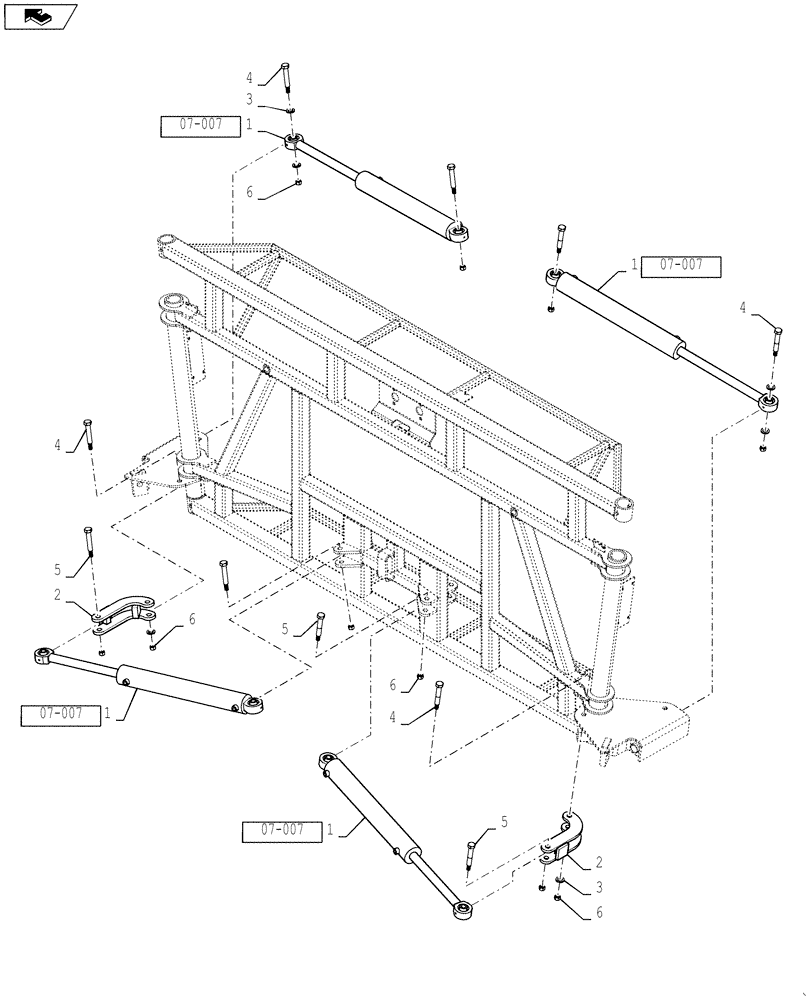

Запчасти Case IH 4420 (08-002[02]) - LOWER PIVOT GROUP, CENTER SECTION, 120 BOOM (09) - BOOMS

1

87272004

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 549.4mm Stroke

3.00 X 21.63X 1.5

4шт.

1

87272004R

REMAN-HYD CYLINDER

4420 PATRIOT SPRAYER, 3.00 X 21.63X 1.5 (8/06-9/11)

4шт.

1

87272004C

CORE-HYD CYLINDER

Return Number

4шт.

2

87708068

ARM

Inner Breakaway

2шт.

3

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, HDN, DOR

6шт.

4

BN310280

BOLT

M20X125 SHANK,CUTOFF

4шт.

5

BN310279

BOLT

M20X108 SHANK,CUTOFF

6шт.

6

86980518

NUT,Hex, M20 - 2.5, Cl 8.8, DOR

10шт.
