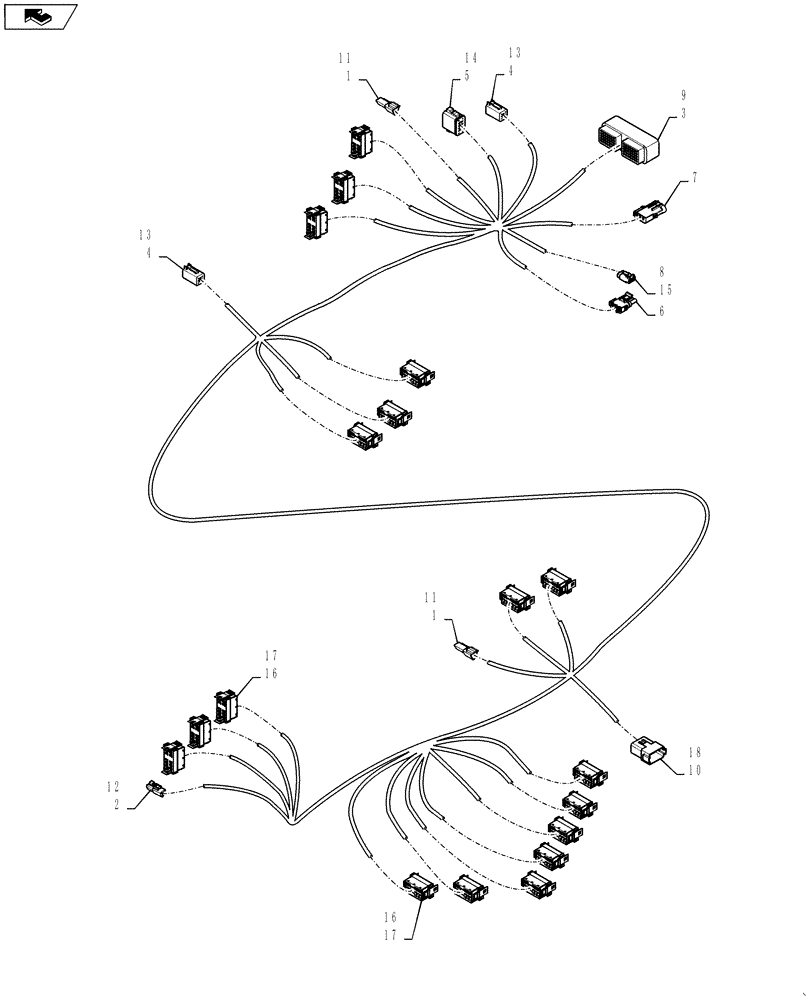

Запчасти Case IH 4420 (12-075) - HARNESS RH CONSOLE, 87749306 (06) - ELECTRICAL

0

87749306

HARNESS

RH Console

1шт.

1

87695723

ELEC CONNECTOR,Male , 3 Pole

3 Pin

2шт.

2

87695580

ELEC CONNECTOR,Female, 3 Pole

3-Way Receptacle Housing, Deutsch DT

1шт.

3

87707115

CONTACT HOUSING,Female, 70 Pole

DEUTSCH_DRC SERIES_70-WAY_RECEP HSG

1шт.

4

87694112

ELEC CONNECTOR,Female, 6 Pole

6 Way Recepacle Housing

2шт.

5

87695592

CONTACT HOUSING,Female, 12 Pole

Deutsch DT Series 12 Way Receptacle Housing

1шт.

6

87644909

WIRE CONNECTOR,Female, 3 Pins

Packard, Weather Pack, 3 Way, Female

1шт.

7

87692858

ELEC CONNECTOR,Male

Packard, Weather Pack, 3 Way, Male

1шт.

8

87696551

CONTACT HOUSING,Female, 3 Pole

DEUTSCH_DTM SERIES_3-WAY_RECEP HSG

1шт.

9

87271606

BOOT

Connector, DRC70

1шт.

10

87695724

ELEC CONNECTOR,Male, 12 Pole

DEUTSCH_DT SERIES_12-WAY_TAB HSG

1шт.

11

87695625

WIRE CONNECTOR,Locking, Green

Lock For 3 Way Receptacle

2шт.

12

87695646

WEDGE

Lock For 3 Ping Plug

1шт.

13

87694150

LOCKING TAB,Wedge Lock

Lock For 6 Way Plug

2шт.

14

87695651

LOCKING TAB,Wedge Lock

Lock For 12 Way Plug

1шт.

15

87705586

WEDGE

Lock For 3 Pin Plug Housing

1шт.

16

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

FEMALE METRI-PACK 630 TIN PLATED TERMINAL

71шт.

17

BN310610

ELEC CONNECTOR,Female, 10 Pin

Eaton Switch

18шт.

18

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock For 12 Pin Receptacle Housing

1шт.
