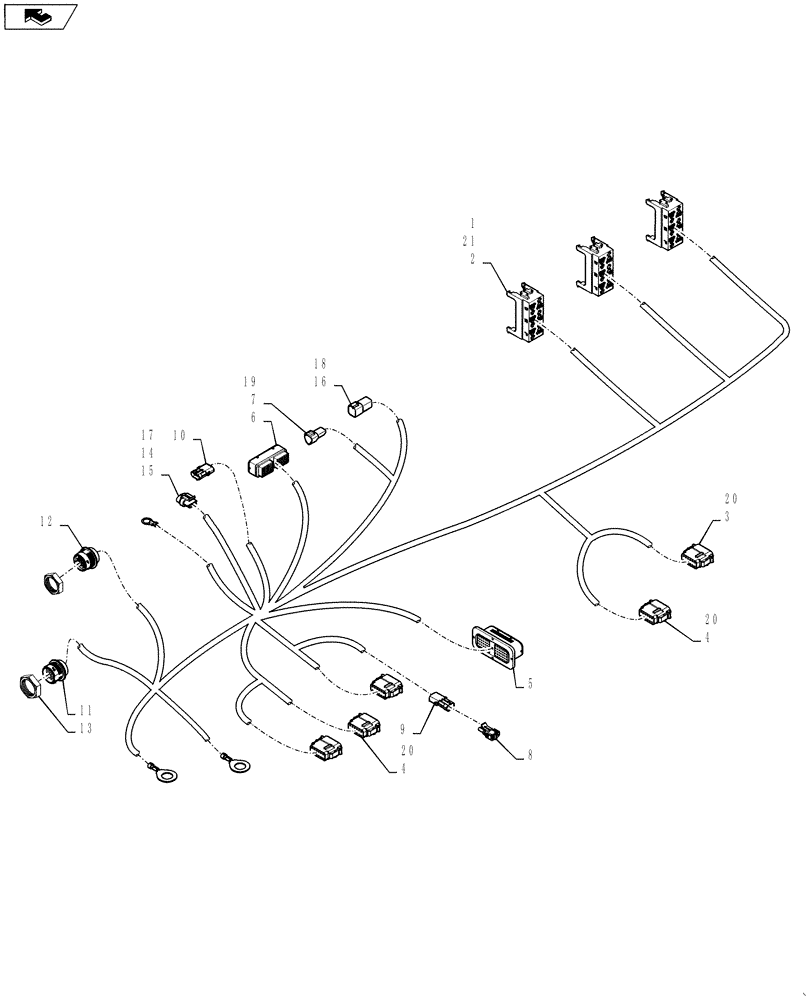

Запчасти Case IH 4420 (12-074) - HARNESS RH, COMPARTMENT 87749305 (06) - ELECTRICAL

0

87749305

HARNESS

RH, Compartment, N08

1шт.

1

86509590

RELAY

20 Amp

13шт.

2

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

PACKARD_CONVENIENCE CENTER_30-WAY_FEMALE

3шт.

3

87700156

CONTACT HOUSING,Female, 12 Pole

DEUTSCH_DTM SERIES_12-WAY_RECEP HSG

3шт.

4

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

DEUTSCH_DTM SERIES_12-WAY_RECEP HSG

2шт.

5

87707114

CONTACT HOUSING,Male, 70 Pole

DEUTSCH_DRC SERIES_70-WAY_TAB HSG

1шт.

6

87707115

CONTACT HOUSING,Female, 70 Pole

DEUTSCH_DRC SERIES_70-WAY_RECEP HSG

1шт.

7

87695723

ELEC CONNECTOR,Male , 3 Pole

3 Pin

1шт.

8

87692855

CONTACT HOUSING,Male, 2 Cavities

Packard, Weather Pack, 2 Way, Female

1шт.

9

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Packard, Weather Pack, 2 Way, Male

1шт.

10

87692858

ELEC CONNECTOR,Male

Packard, Weather Pack, 3 Way, Male

1шт.

11

87716941

MULTIPOLE CONNECTOR,Male, 31 Pole

DEUTSCH_HDP20 SERIES_31-WAY_TAB HSG

1шт.

12

87700815

MULTIPOLE CONNECTOR,Male, 35 Pole

DEUTSCH_HDP 20 SERIES_35-WAY_TAB HSG

1шт.

13

87271930

NUT

Panel #24

2шт.

14

87693742

FUSE,5A

1шт.

15

87688712

WIRE CONNECTOR,Female

Packard, Metri-Pack, 630, 2 Way, Female

1шт.

16

87694152

CONTACT HOUSING,Male, 6 Pole

DEUTSCH_DT SERIES_6-WAY_TAB HSG

1шт.

17

87688863

CAP

Covering Connector, Black

1шт.

18

87694147

WEDGE,Locking, Green

Lock For 6 Way Receptacle

1шт.

19

87695625

WIRE CONNECTOR,Locking, Green

Lock For 3 Way Receptacle

1шт.

20

87705198

WEDGE

Lock Plug Housing

5шт.

21

87704921

LOCK

Blue Comb Secondary Lock

6шт.
