Запчасти Case IH 4420 (12-065) - HARNESS, 4WD SPRAY CAB, INSIDE AUTO GUIDANCE (06) - ELECTRICAL

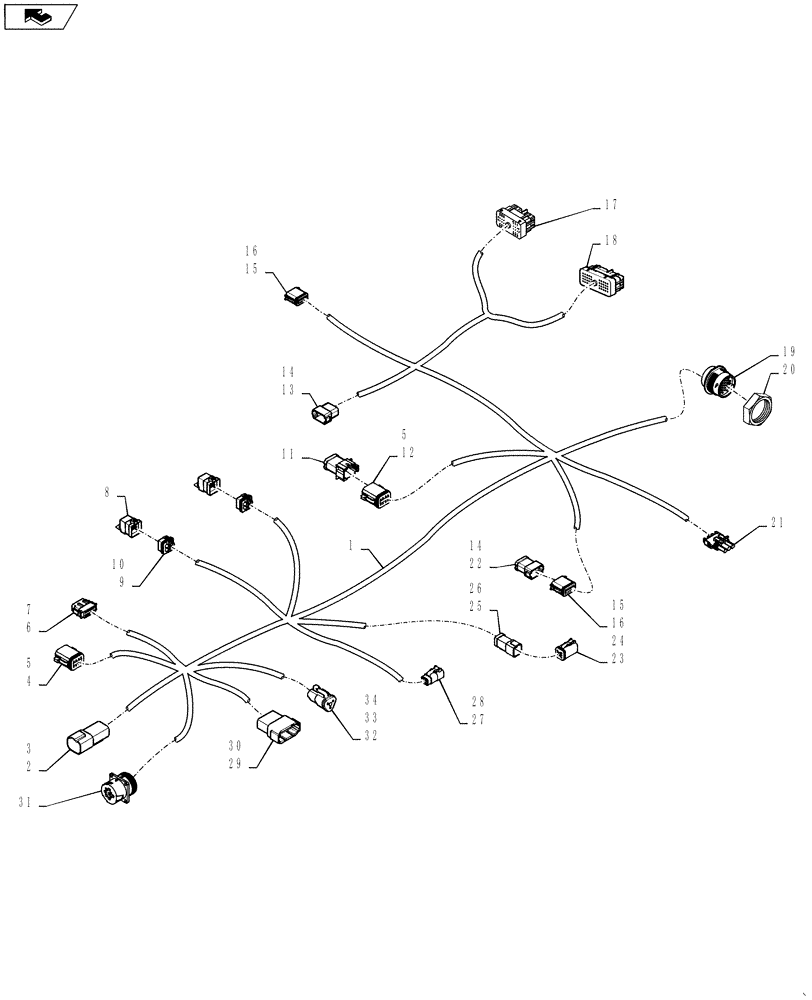

Схема запчастей Case IH 4420 - (12-065) - HARNESS, 4WD SPRAY CAB, INSIDE AUTO GUIDANCE (06) - ELECTRICAL
24
28
home
33
10
2
16
19
13
9
15
18
14
25
16
31
32
5
5
20
21
4
14
27
3
26
22
34
8
30
29
23
6
11
12
15
7
17
1

Артикул

Название

Примечание

Количество

1

84154702

HARNESS

Accuguide, 4WD Cab

1шт.

2

87694154

CONTACT HOUSING,Male, 4 Pole

4 Cavity Housing

1шт.

3

87694145

ELEC CONNECTOR

Wedge Lock for 4 Cavity Receptacle

1шт.

4

84806311

WIRE CONNECTOR,Female, 8 Pin , 14 - 20 SAE

1шт.

5

225321C1

WEDGE

CONNECTOR Wedge

2шт.

6

87700156

CONTACT HOUSING,Female, 12 Pole

DEUTSCH_DTM SERIES_12-WAY_RECEP HSG

1шт.

7

87705198

WEDGE

Lock Plug Housing

1шт.

8

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

5 Pin, 2010F Fuse/Relay Block

2шт.

9

321836A1

ELEC CONNECTOR

Wedge

2шт.

10

293256A2

RELAY,12V

12v 40 amp weatherproof

2шт.

11

87587627

CONTACT HOUSING

Buss, Receptacle 8 Position, (5 X 3) DT

1шт.

12

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

1шт.

13

87695724

ELEC CONNECTOR,Male, 12 Pole

DEUTSCH_DT SERIES_12-WAY_TAB HSG

1шт.

14

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock For 12 Pin Receptacle Housing

2шт.

15

87695592

CONTACT HOUSING,Female, 12 Pole

Deutsch DT Series 12 Way Receptacle Housing

2шт.

16

87695651

LOCKING TAB,Wedge Lock

Lock For 12 Way Plug

2шт.

17

244615A1

CONNECTOR, ELEC

CONNECTOR

1шт.

18

198459A1

CONNECTOR, ELEC

CONNECTOR

1шт.

19

87696944

ELEC CONNECTOR,Female, 31 Pole

1шт.

20

87271930

NUT

Panel #24

1шт.

21

87644909

WIRE CONNECTOR,Female, 3 Pins

Packard, Weather Pack, 3 Way, Female

1шт.

22

87269436

SOCKET/RECEPTACLE

Buss, Receptacle, 12 Position, DT

1шт.

23

87694112

ELEC CONNECTOR,Female, 6 Pole

6 Way Recepacle Housing

1шт.

24

87694150

LOCKING TAB,Wedge Lock

Lock For 6 Way Plug

1шт.

25

87587623

CONTACT HOUSING

Buss Receptacle, 6 Position DT

1шт.

26

87694147

WEDGE,Locking, Green

Lock For 6 Way Receptacle

1шт.

27

277904A1

ELEC CONNECTOR,Female, 4 Pin

1шт.

28

279794A1

STOP LOCK,Locking, Orange

Wedge

1шт.

29

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

1шт.

30

87705201

WEDGE

Receptacle Housing

1шт.

31

87516075

MULTIPOLE CONNECTOR,Male, 9 Pole

1шт.

32

87695580

ELEC CONNECTOR,Female, 3 Pole

3-Way Receptacle Housing, Deutsch DT

1шт.

33

381415A1

CONNECTOR, ELEC

CONNECTOR Wedge

1шт.

34

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

Выбрано товаров: 34
