Запчасти Case IH 4420 (12-061[01]) - ELECTRICAL GROUP, AUTO GUIDE (06) - ELECTRICAL

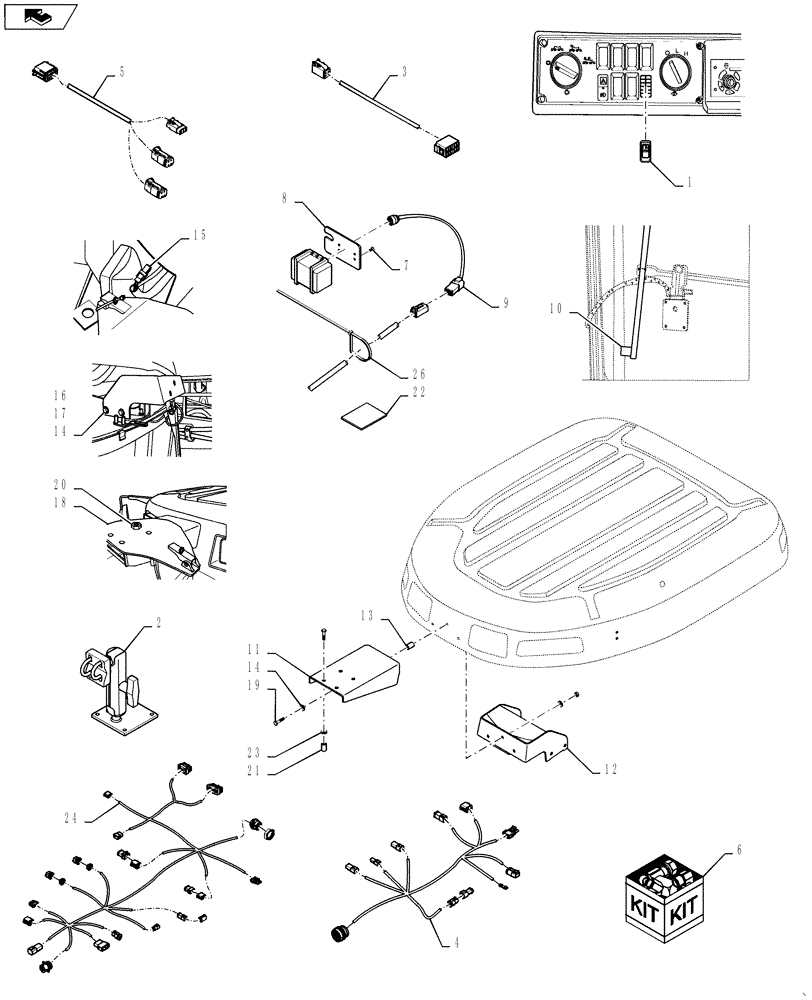

Схема запчастей Case IH 4420 - (12-061[01]) - ELECTRICAL GROUP, AUTO GUIDE (06) - ELECTRICAL
5
14
16
home
9
17
20
10
6
7
8
24
15
2
3
18
1
12
13
23
14
11
21
4
26
22
19

Артикул

Название

Примечание

Количество

1

87711789

AUTO GUIDANCE DISENG

1шт.

2

87386396

MOUNT

Mount Color Display

1шт.

See Fig. 12-066

1шт.

3

87659039

HARNESS

4WD Cab Autoguidance Road Switch

1шт.

See Fig. 12-062

1шт.

4

87648175

HARNESS

SPX Outside, Autoguidance

1шт.

See Fig. 12-063

1шт.

5

87667450

HARNESS

GPS Antenna Receiver

1шт.

See Fig. 12-064

1шт.

6

87602275

KIT

AUTO SENSE AND CABLES

1шт.

7

87657976

HEX SOC SCREW,Flat Hd, CSK, #6 - 32 x 3/8"

6-32 X .375

4шт.

8

87649884

MOUNT

Autosense, SPX

1шт.

9

87646096

SWITCH ASSY

Remote, With Pigtail Connector (auto guidance end of row engage)

1шт.

10

386857A1

MOUNTING PARTS

monitor, RH window

1шт.

11

87304768

BRACKET

SF ANTENNA MOUNTING

1шт.

12

87304763

MOUNTING PARTS

Antenna

1шт.

13

87304771

SPACER

Auto Guidance Antenna

3шт.

14

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

11 x 21 x 2 mm, CST, DOR

7шт.

15

87544759

HARNESS

GPS Antenna Receiver

1шт.

16

87342008

BOLT,Hex, M10 x 20mm, Cl 10.9

Hex, M10 x 20 CL10.9 DOR

4шт.

17

87344003

NUT,M10-1.5, 10, DOR

4шт.

18

87528080

BASE PLATE

Auto Guidance, Roof Mounting Antennas

1шт.

19

374897

SCREW,Phil Flat Hd, M8 x 1.25 x 25mm, Cl 4.8

4шт.

20

9991588

NUT,M8 x 1.25, Cl 8

4шт.

21

87423195

SPACER

AUTO GUIDANCE

4шт.

22

87646099

FASTENER

dual lock

2шт.

23

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

24

84154702

HARNESS

Accuguide, 4WD Cab

1шт.

See Fig. 12-065

1шт.

25

BN315870

SEALANT

11 OZ, BLACK, G-FLEX

1шт.

26

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

4шт.

Выбрано товаров: 31
