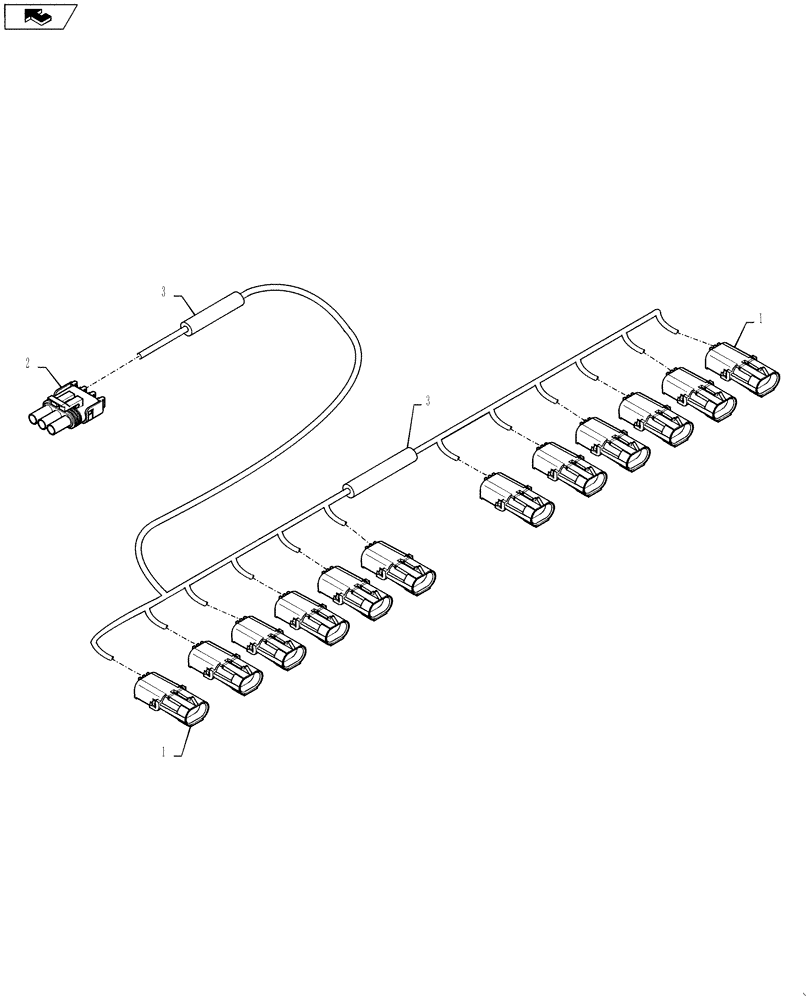

Запчасти Case IH 4420 (12-047) - HARNESS, AIM, 12 NOZZLE TIP (06) - ELECTRICAL

1

87381642

WIRE HARNESS

Aim Command, 6 Section, 100' Boom, Outer Sections, 12 Nozzle

1шт.

2

245484C1

ELEC CONNECTOR,3 Pin

Aim Command Central Harness, P100

1шт.

3

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Aim Command Central Harness, P100

3шт.

4

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Aim Command Central Harness, P100

1шт.

5

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J001 thru J012

12шт.

6

225119C1

TERMINAL

Nozzle Solenoid Connector, J001 thru J012

24шт.

7

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J001 thru J012

24шт.
